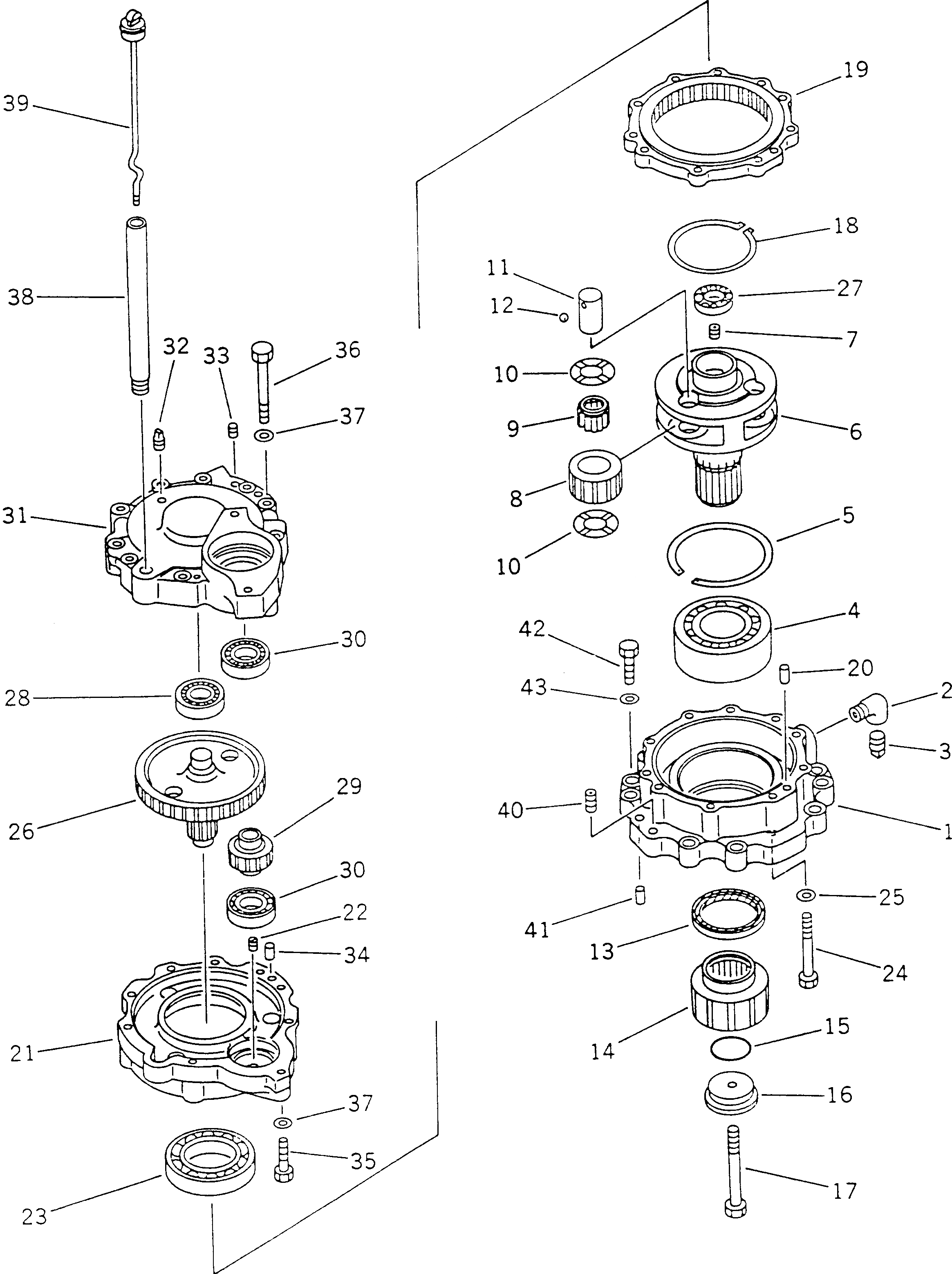

Запчасти Komatsu PC60-6C МЕХАНИЗМ ПОВОРОТА ПОВОРОТН. СИСТЕМА

|$0

201-26-00031

SWING MACHINERY A.

1

201-26-61112

CAGE

2

07323-30600

ELBOW

3

07042-30617

PLUG

4

06030-22314

BEARING

5

04071-00150

RING,SNAP

6

201-26-61211

CARRIER

7

07043-00312

PLUG

8

201-26-61220

GEAR

9

569-15-39410

BEARING

10

20X-26-21250

WASHER

11

201-26-61231

SHAFT

12

04260-00635

BALL

13

07012-00085

SEAL,OIL

14

20X-26-21360

GEAR

15

07000-05055

O-RING

16

20X-26-21280

HOLDER

17

01011-51600

BOLT

18

203-26-41350

RING,SNAP

19

201-26-61181

GEAR

20

04020-01434

PIN,DOWEL

21

201-26-61122

CASE

22

131-21-41520

PLUG

23

06043-00215

BEARING

24

01011-51210

BOLT

25

01643-31232

WASHER

26

201-26-61320

GEAR

27

06040-06006

BEARING

28

06040-06306

BEARING

29

201-26-61330

GEAR

30

06040-06207

BEARING

31

201-26-61311

COVER

32

07042-30108

PLUG

33

07049-01215

PLUG

34

04020-01024

PIN,DOWEL

35

01010-51265

BOLT

36

01011-51250

BOLT

37

01643-31232

WASHER

38

203-26-56160

FILLER

39

20X-26-21322

GAUGE

40

07049-01620

PLUG

41

04020-01638

PIN,DOWEL

42

01010-51655

BOLT

43

01643-31645

WASHER
