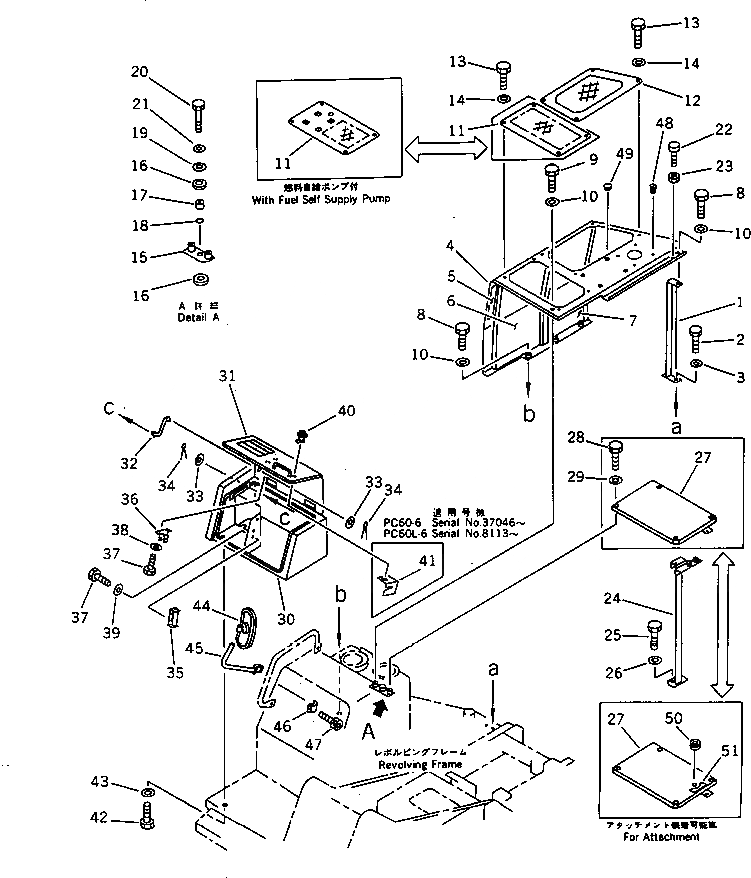

Запчасти Komatsu PC60-6 ПРАВ. КРЫШКА(ДЛЯ WRIST РЫЧАГ УПРАВЛ-Я)(№-) ЧАСТИ КОРПУСА

1

201-54-61120

BRACKET

2

01010-51030

BOLT

3

01643-31032

WASHER

4

201-54-63111

COVER ASS'Y

5

201-54-63120

PLATE (WELDED)

6

201-54-62261

SHEET

7

201-54-62270

SHEET

8

01010-51025

BOLT

9

01010-51045

BOLT

10

01643-31032

WASHER

11

201-54-61622

COVER

11

201-54-63411

COVER,(WITH FUEL SELF SUPPLY PUMP)

12

201-54-62161

COVER

13

01010-51020

BOLT

14

01643-31032

WASHER

15

201-54-62170

PLATE

16

203-62-42770

CUSHION

17

20X-62-21550

SPACER

18

07000-03025

O-RING

19

566-35-42430

PLATE

20

01010-51250

BOLT

21

01643-31232

WASHER

22

203-54-56710

STOPPER

23

01580-11008

NUT

24

201-54-62180

BRACKET

25

01010-51025

BOLT

26

01643-31032

WASHER

27

201-54-61461

COVER

27

201-973-6570

COVER,(FOR ATTACHMENT)

28

01010-51025

BOLT

29

01643-31032

WASHER

|$31

201-54-61402

COVER ASS'Y

|$32

201-54-61401

COVER ASS'Y

30

COVER

30

COVER

31

COVER

32

203-54-56630

ROD

33

01643-30623

WASHER

34

04050-11612

PIN,COTTER

35

203-54-56640

BRACKET

36

203-54-56820

CLAMP

37

01010-51020

BOLT

38

01643-31032

WASHER

39

01640-21016

WASHER

40

205-60-71220

LOCK ASS'Y

41

203-54-56690

PLATE

42

01010-51025

BOLT

43

01643-31032

WASHER

44

08174-13113

MIRROR

45

203-54-52420

SUPPORT

46

205-54-76390

CLAMP

47

01252-41025

BOLT

48

07049-01215

PLUG

49

09415-01008

CAP

50

08037-02512

GROMMET,(FOR ATTACHMENT)

51

201-00-61290

PLATE, MARK,(FOR ATTACHMENT)
