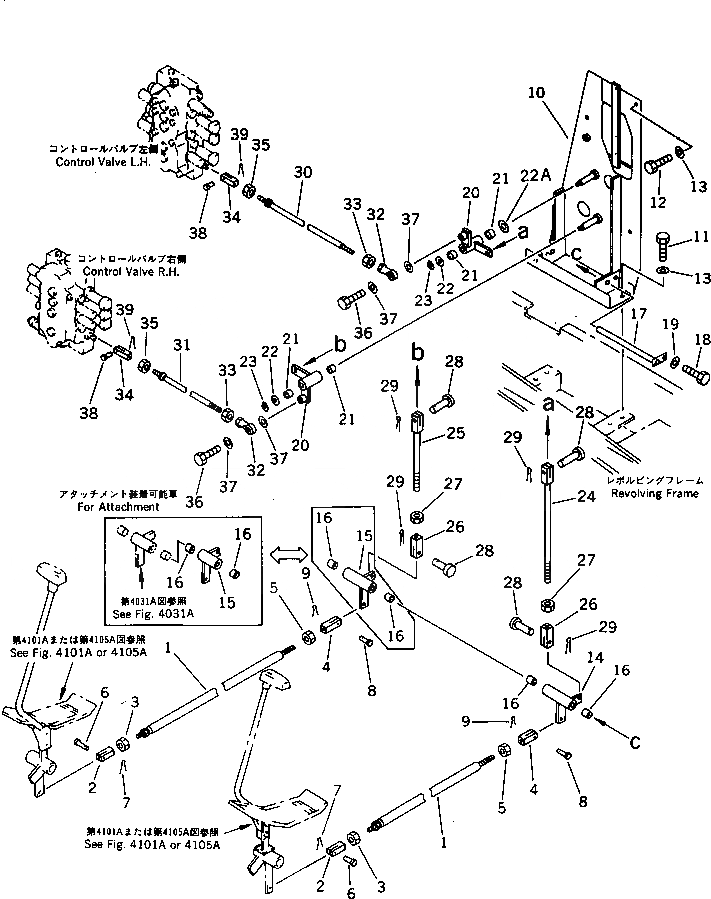

Запчасти Komatsu PC60-6 КОНТРОЛЬ ХОДА МЕХАНИЗМ(№-) СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

1

201-43-61210

ROD

2

04210-21040

YOKE

3

01582-11008

NUT

4

04220-21040

YOKE

5

01508-41006

NUT,L.H. THREAD

6

04205-11028

PIN

7

04050-13020

PIN,COTTER

8

04205-11028

PIN

9

04050-13020

PIN,COTTER

10

201-43-61111

BRACKET

11

01010-51025

BOLT

12

01010-51035

BOLT

13

01643-31032

WASHER

14

201-43-61161

LEVER

15

201-43-61171

LEVER

15

201-973-6191

LEVER,(FOR ATTACHMENT)

16

195-61-34120

BEARING

17

201-43-61120

SHAFT

18

01010-51020

BOLT

19

01643-31032

WASHER

20

201-43-61240

LEVER

21

195-61-34120

BEARING

22

01643-31445

WASHER

22A

01643-31645

WASHER

23

04064-01410

RING,SNAP

24

04244-41028

ROD

25

04244-41013

ROD

26

04210-21040

YOKE

27

01582-11008

NUT

28

04205-11028

PIN

29

04050-13020

PIN,COTTER

30

20X-43-21290

ROD

31

20X-43-21310

ROD

32

04250-61056

END,ROD, L.H. THREAD

33

01508-41006

NUT,L.H. THREAD

34

201-43-61220

YOKE

35

01582-11008

NUT

36

01010-51030

BOLT

37

01643-31032

WASHER

38

04205-10622

PIN

39

04050-11612

PIN,COTTER
