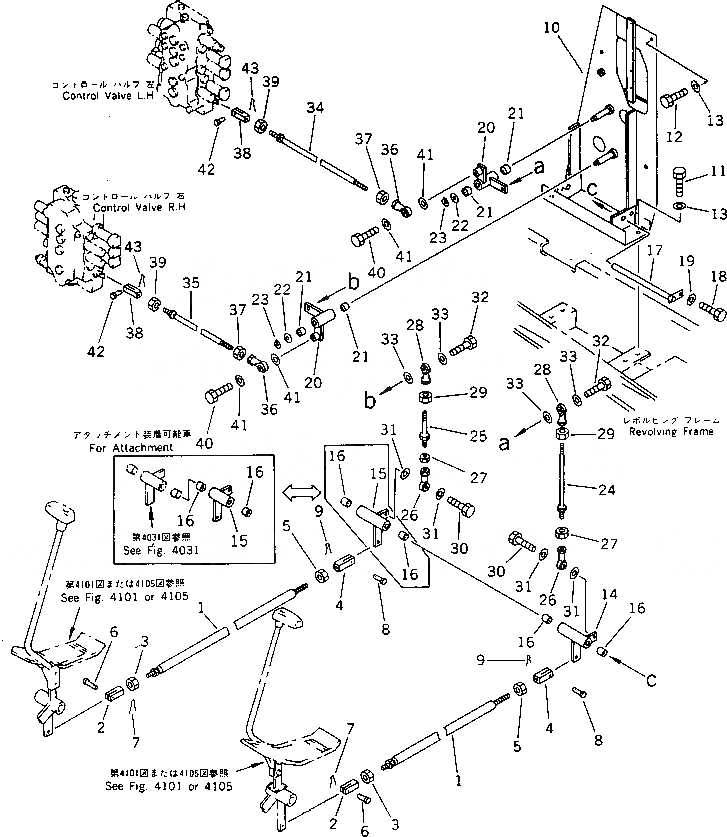

Запчасти Komatsu PC60-6 КОНТРОЛЬ ХОДА МЕХАНИЗМ(№8-) СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

1

201-43-61210

ROD

2

04210-21040

YOKE

3

01582-11008

NUT

4

04220-21040

YOKE

5

01508-41006

NUT,L.H. THREAD

6

04205-11028

PIN

7

04050-13020

PIN,COTTER

8

04205-11028

PIN

9

04050-13020

PIN,COTTER

10

201-43-61111

BRACKET

11

01010-51025

BOLT

12

01010-51035

BOLT

13

01643-31032

WASHER

14

201-43-61160

LEVER

15

201-43-61170

LEVER

15

201-973-6190

LEVER,(FOR ATTACHMENT)

16

195-61-34120

BEARING

17

201-43-61120

SHAFT

18

01010-51020

BOLT

19

01643-31032

WASHER

20

20X-43-21222

LEVER

21

195-61-34120

BEARING

22

01643-31445

WASHER

23

04064-01410

RING,SNAP

24

04248-31027

ROD

25

04248-31012

ROD

26

04250-41056

END,ROD

27

01582-11008

NUT

28

04250-61056

END,ROD, L.H. THREAD

29

01508-41006

NUT,L.H. THREAD

30

01010-51030

BOLT

31

01643-31032

WASHER

32

01010-51030

BOLT

33

01643-31032

WASHER

34

20X-43-21290

ROD

35

20X-43-21310

ROD

36

04250-61056

END,ROD, L.H. THREAD

37

01508-41006

NUT,L.H. THREAD

38

201-43-61220

YOKE

39

01582-11008

NUT

40

01010-51030

BOLT

41

01643-31032

WASHER

42

04205-10622

PIN

43

04050-11612

PIN,COTTER
