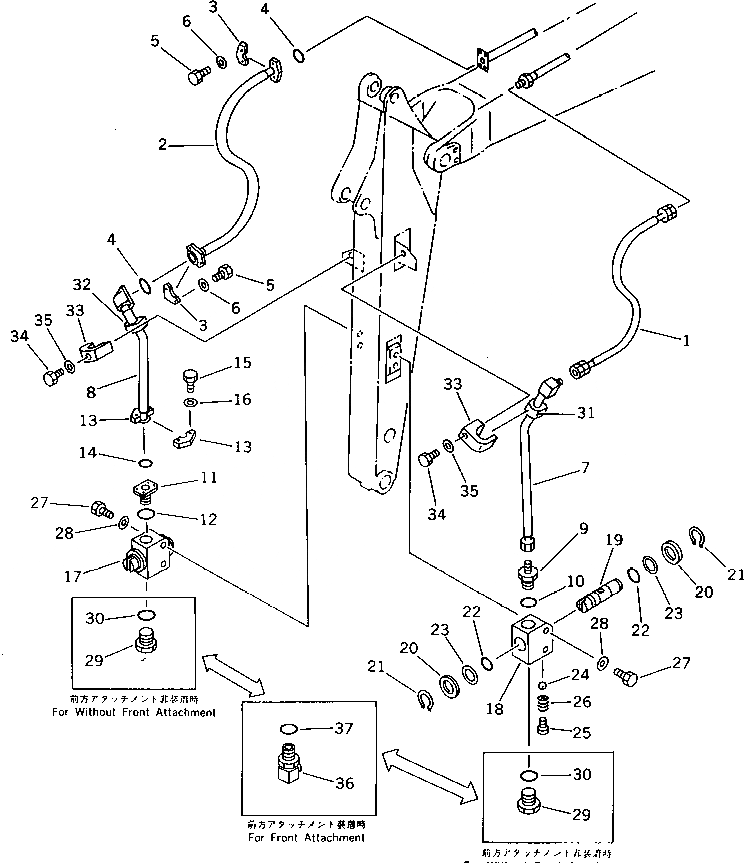

Запчасти Komatsu PC60-6 ГИДРОЛИНИЯ (ДЛЯ НАВЕСНОЕ ОБОРУД-Е) (РУКОЯТЬ)(№8-) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

07096-20409

HOSE

2

07099-20612

HOSE

3

07371-30640

FLANGE,SPLIT

4

07000-13025

O-RING

5

07372-21035

BOLT

6

01643-51032

WASHER

7

201-973-6630

TUBE

8

201-973-6641

TUBE

9

233-60-16460

NIPPLE

10

07002-13334

O-RING

11

201-973-6810

NIPPLE

12

07002-13334

O-RING

13

07371-30640

FLANGE,SPLIT

14

07000-13025

O-RING

15

07372-21035

BOLT

16

01643-51032

WASHER

17

203-973-5800

VALVE ASS'Y

18

203-973-3910

BODY

19

203-973-3920

SPOOL

20

131-60-16170

WASHER

21

04064-03818

RING

22

07000-13032

O-RING

23

07001-03032

RING

24

04260-00793

BALL

25

07043-00108

PLUG

26

236-10-12240

SPRING

27

01010-51075

BOLT

28

01643-31032

WASHER

29

07040-13316

PLUG,(FOR FRONT ATTACHMENT-LESS)

30

07002-13334

O-RING

31

203-62-43390

CUSHION

32

203-62-43380

CUSHION

33

203-62-43370

CLAMP

34

01010-51275

BOLT

35

01643-31232

WASHER

36

201-973-6550

ELBOW,(FOR FRONT ATTACHMENT)

37

07002-13334

O-RING,(FOR FRONT ATTACHMENT)
