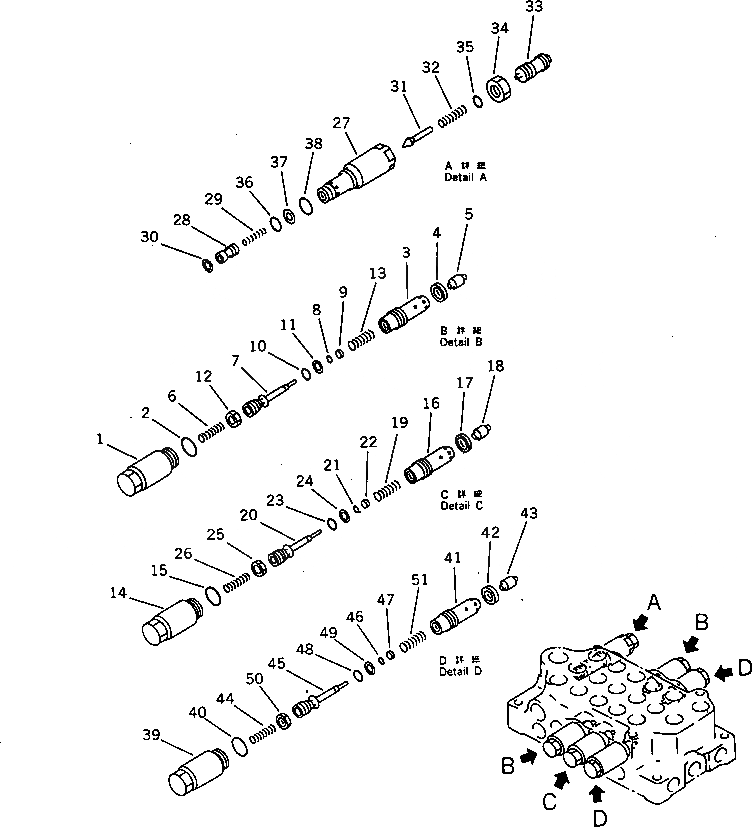

Запчасти Komatsu PC60-6 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (С ОТВАЛ) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-25-13303

VALVE ASS'Y,R.H.

|$1

709-25-13302

VALVE ASS'Y,R.H.

|$2

709-25-13301

VALVE ASS'Y,R.H.

|$3

709-25-13300

VALVE ASS'Y,R.H.

|$5

709-20-61800

VALVE ASS'Y,SUCTION AND SAFETY

1

709-20-61110

SLEEVE

2

709-25-11390

O-RING

3

VALVE

4

SEAL

5

POPPET

6

SPRING

7

PISTON

8

O-RING

9

SEAL

10

O-RING

11

RING,BACK-UP

12

NUT

13

709-20-61160

SPRING

|$19

709-20-61301

VALVE ASS'Y,SUCTION AND SAFETY

14

709-20-61110

SLEEVE

15

709-25-11390

O-RING

16

VALVE

17

SEAL

18

POPPET

19

SPRING

20

PISTON

21

O-RING

22

SEAL

23

O-RING

24

RING,BACK-UP

25

NUT

26

709-20-61160

SPRING

|$33

709-20-51800

RELIEF VALVE ASS'Y

27

SLEEVE

28

VALVE

29

709-20-51270

SPRING

30

700-20-51240

RING

31

700-80-61190

POPPET

32

709-20-51231

SPRING

33

709-20-51280

SCREW

34

01582-11411

NUT

35

07000-02011

O-RING

36

700-22-11410

O-RING

37

700-80-64220

RING,BACK-UP

38

07002-02434

O-RING

|$46

709-20-61700

VALVE ASS'Y,SUCTION AND SAFETY

39

709-20-61110

SLEEVE

40

709-25-11390

O-RING

41

VALVE

42

SEAL

43

POPPET

44

709-20-61160

SPRING

45

PISTON

46

O-RING

47

SEAL

48

O-RING

49

RING,BACK-UP

50

NUT

51

SPRING
