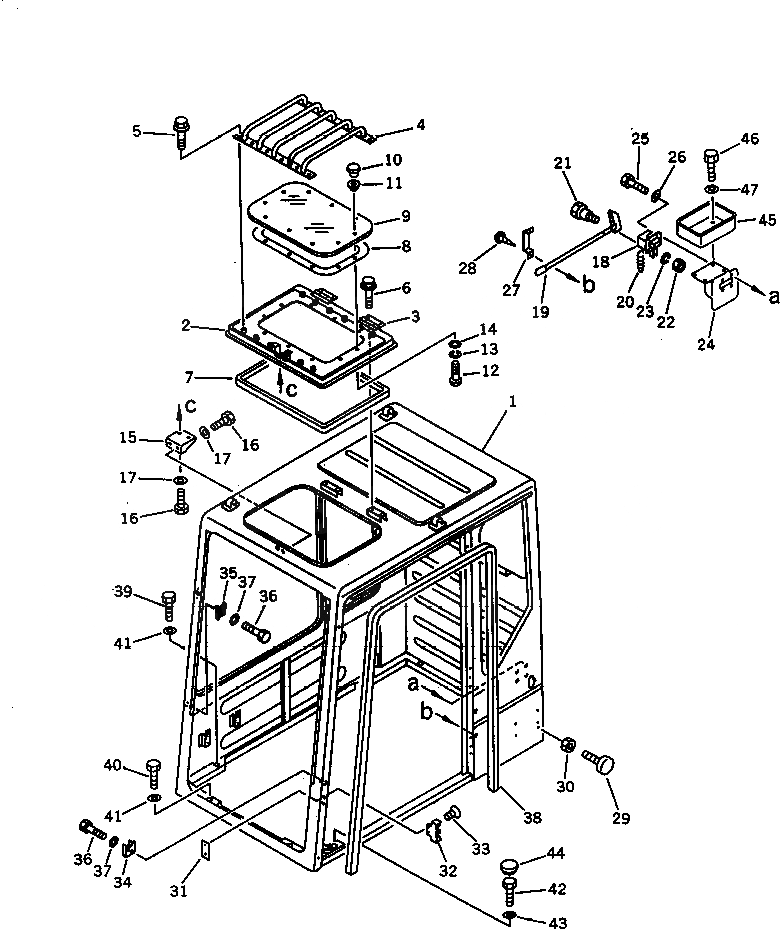

Запчасти Komatsu PC60-6 КАБИНА (/7) (ДЛЯ NORWAY СПЕЦ-Я.)(№-) ЧАСТИ КОРПУСА

1

CAB

2

20Y-54-22120

COVER

3

20Y-54-11282

HINGE (WELDED)

4

20Y-54-22110

COVER

5

20Y-54-14380

BOLT

6

01435-00616

BOLT

7

20Y-54-14630

SEAL

8

20Y-54-22140

SEAL

9

20Y-54-22130

GLASS

10

205-54-51720

RETAINER

11

205-54-51730

PACKING

12

01220-40610

SCREW

13

01602-20619

WASHER,SPRING

14

01640-20610

WASHER

15

205-54-77381

BRACKET

16

01010-50616

BOLT

17

01643-30623

WASHER

|$17

20Y-54-11890

LOCK ASS'Y

18

20Y-54-13530

LOCK

19

20Y-54-13540

LEVER

20

20Y-54-13550

SPRING

21

20Y-54-13560

PIN

22

01580-10605

NUT

23

01602-20619

WASHER,SPRING

24

20Y-54-14910

PLATE

25

01010-50825

BOLT

26

01643-30823

WASHER

27

20Y-54-11490

BRACKET

28

01370-00412

SCREW

29

20Y-54-11611

STOPPER

30

01580-11008

NUT

31

20Y-54-11750

SEAT

32

205-54-71731

STRIKER

33

20Y-54-11740

SCREW

34

20Y-54-14480

BRACKET,L.H.

35

20Y-54-14490

BRACKET,R.H.

36

01010-50825

BOLT

37

01643-30823

WASHER

38

205-54-71560

TRIM

39

01010-51275

BOLT

40

01010-51260

BOLT

41

01643-31232

WASHER

42

01010-51230

BOLT

43

01643-31232

WASHER

44

20Y-54-13480

PLUG

45

120-Y79-5930

CASE

46

01010-50610

BOLT

47

01641-20608

WASHER
