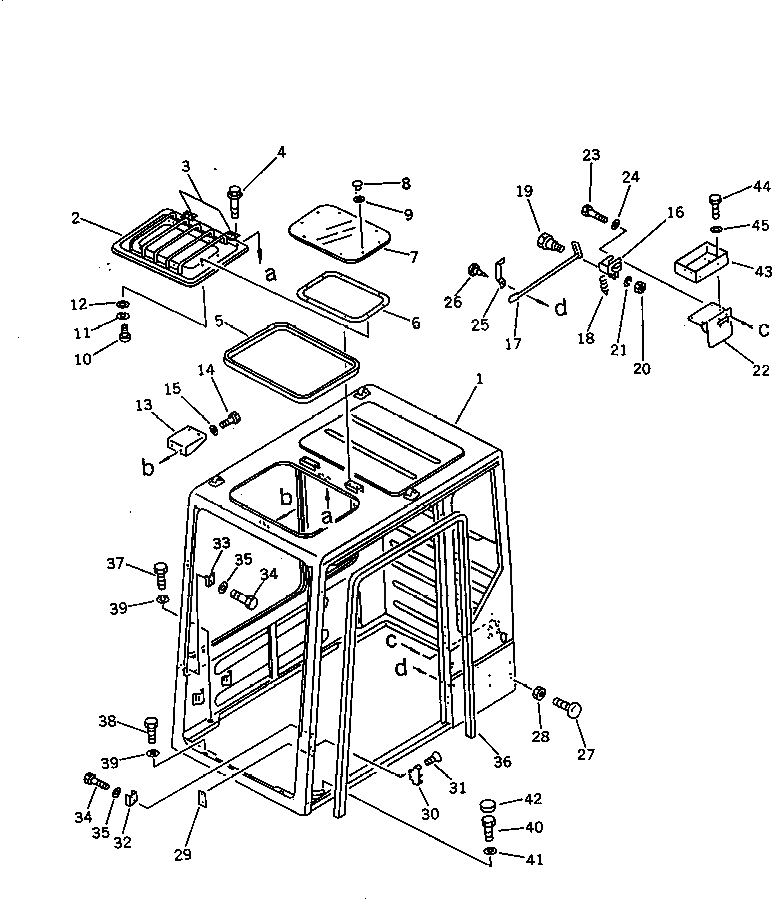

Запчасти Komatsu PC60-6 КАБИНА (/7) (ДЛЯ NORWAY СПЕЦ-Я.)(№8-) ЧАСТИ КОРПУСА

1

CAB

2

205-54-77351

COVER

3

20Y-54-11282

HINGE (WELDED)

4

01435-00616

BOLT

5

20Y-54-14630

SEAL

6

205-54-77360

SEAL

7

205-54-77370

GLASS

8

205-54-51720

RETAINER

9

205-54-51730

PACKING

10

01220-40610

SCREW

11

01602-20619

WASHER,SPRING

12

01640-20610

WASHER

13

205-54-77381

BRACKET

14

01010-50616

BOLT

15

01643-30623

WASHER

|$15

20Y-54-11890

LOCK ASS'Y

16

20Y-54-13530

LOCK

17

20Y-54-13540

LEVER

18

20Y-54-13550

SPRING

19

20Y-54-13560

PIN

20

01580-10605

NUT

21

01602-20619

WASHER,SPRING

22

20Y-54-14910

PLATE

23

01010-50825

BOLT

24

01643-30823

WASHER

25

20Y-54-11490

BRACKET

26

01370-00412

SCREW

27

20Y-54-11611

STOPPER

28

01580-11008

NUT

29

20Y-54-11750

SEAT

30

205-54-71731

STRIKER

31

20Y-54-11740

SCREW

32

20Y-54-14480

BRACKET,L.H.

33

20Y-54-14490

BRACKET,R.H.

34

01010-50825

BOLT

35

01643-30823

WASHER

36

205-54-71560

TRIM

37

01010-51275

BOLT

38

01010-51260

BOLT

39

01643-31232

WASHER

40

01010-51230

BOLT

41

01643-31232

WASHER

42

20Y-54-13480

PLUG

43

120-Y79-5930

CASE

44

01010-50610

BOLT

45

01641-20608

WASHER
