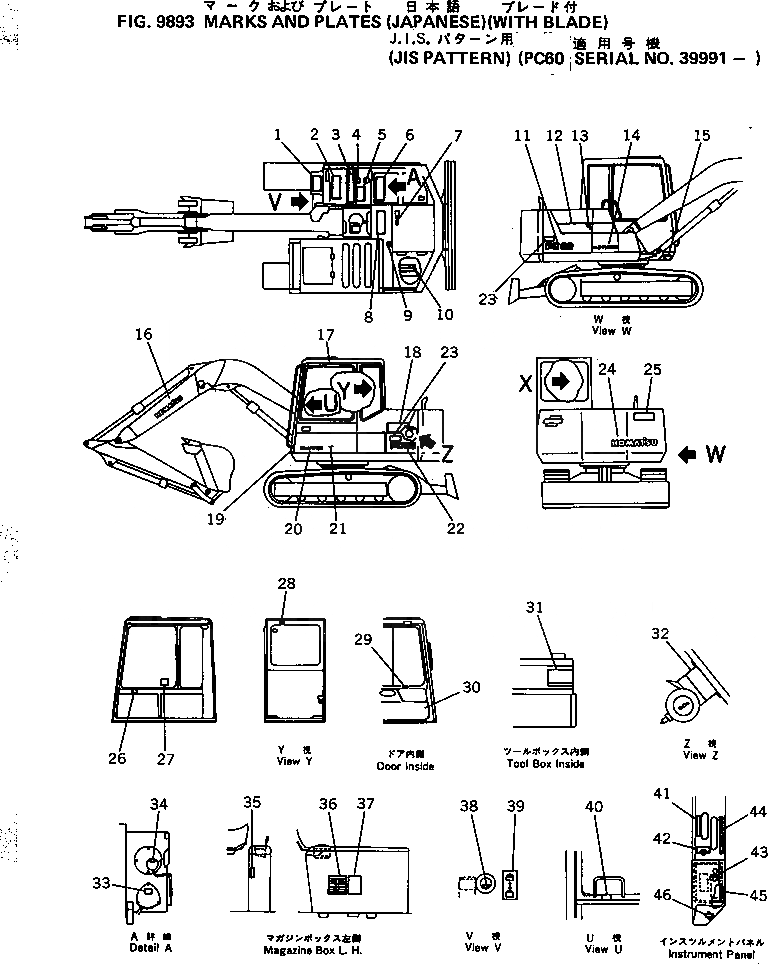

Запчасти Komatsu PC60-6 МАРКИРОВКА (ЯПОН.) (С ОТВАЛ) (JIS PATTERN №-8¤ -)(№999-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
1
203-00-51170
SEAT,NONSKID
2
154-54-23260
SEAT,NONSKID
3
201-00-61190
PLATE¤ MARK,LINE
4
09652-01121
PLATE¤ CAUTION,FUEL
5
203-00-51170
SEAT,NONSKID
6
154-54-23260
SEAT,NONSKID
7
09667-00100
PLATE¤ SAFETY,ENGINE COVER
8
154-54-23260
SEAT,NONSKID
9
09650-01104
PLATE¤ INSTRUCTION,RADIATOR
10
09668-00100
PLATE¤ SAFETY,RADIATOR CAP
11
201-00-61111
PLATE¤ MARK,PC60
12
201-00-61180
PLATE¤ MARK,LINE
13
203-00-31120
PLATE¤ INSTRUCTION,HYDRAULIC OIL LEVEL
14
09690-C0315
PLATE¤ MARK,KOMATSU
15
09601-00835
PLATE¤ NAME,(LIMITED SUPPLY)
|15
04418-13060
SCREW
16
09690-B0450
PLATE¤ MARK,KOMATSU
17
20Y-00-11350
PLATE
18
201-00-61170
PLATE¤ MARK,LINE
19
20Y-00-11490
PLATE
20
09690-C0315
PLATE¤ MARK,KOMATSU
21
20Y-00-11350
PLATE
22
201-00-61111
PLATE¤ MARK,PC60
23
20Y-00-11520
PLATE¤ MARK
24
09690-C0630
PLATE¤ MARK,KOMATSU
25
203-00-51210
PLATE¤ CAUTION,KEEP OUT OF TURNING AREA
26
203-916-5730
PLATE¤ OPERATING,ISO PATTERN
27
201-00-61450
PLATE¤ OPERATING,PANEL CONTROL
28
205-00-63230
PLATE¤ CAUTION,AUTO LOCK
29
205-00-71340
PLATE¤ OPERATING,DOOR LOCK
30
20Y-54-13473
COVER
|30
20Y-54-14560
CLIP ASS'Y
31
201-00-61212
CHART¤ OIL
32
09637-01661
PLATE¤ INSTRUCTION,AIR CLEANER
33
09653-00100
PLATE¤ SAFETY,HYDRAULIC TANK CAP
34
201-54-21940
PLATE¤ CAUTION,HYDRAULIC TANK CAP
35
09685-00002
PLATE¤ OPERATING,LOCK LEVER
36
201-00-61221
PLATE¤ DATA
37
201-00-61160
PLATE¤ CAUTION
38
201-00-61380
PLATE¤ OPERATING,TOOL BOX LOCK
39
201-00-61340
PLATE¤ OPERATING,TOOL BOX LOCK
40
203-00-52190
PLATE¤ CAUTION,WIPER MOTOR CONNECTOR
41
201-00-61320
PLATE¤ OPERATING
42
09683-01060
PLATE¤ OPERATING,STARTING SWITCH
43
201-00-61151
PLATE¤ CAUTION,PANEL
44
201-00-61230
PLATE¤ OPERATING,FUEL CONTROL
45
201-00-61240
PLATE¤ MARK,KOMATSU
46
201-00-61140
PLATE¤ OPERATING,SWING MECHANICAL BRAKE
Выбрано товаров: 48
