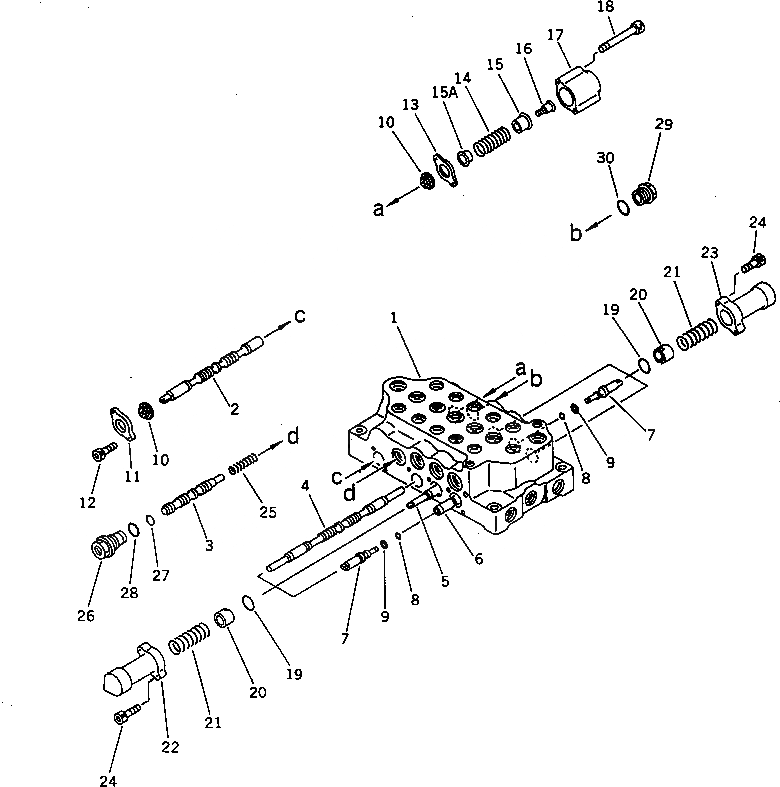

Запчасти Komatsu PC60-6 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (С ОТВАЛ) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-25-13303

VALVE ASS'Y,R.H.

|1

709-25-13302

VALVE ASS'Y,R.H.

|1

709-25-13301

VALVE ASS'Y

|1

709-25-13300

VALVE ASS'Y,R.H.

1

BODY,VALVE

2

SPOOL,R.H. TRAVEL

|2

SPOOL,R.H. TRAVEL

3

SPOOL,STRAIGHT TRAVEL

4

SPOOL,BUCKET

5

SPOOL,BOOM LOW

|5

SPOOL,BOOM LOW

|5

SPOOL,BOOM LOW

6

SPOOL,ARM HIGH

7

709-26-11410

JOINT

8

07000-11003

O-RING

9

07001-01003

RING,BACK-UP

10

709-25-11290

SEAL

11

709-25-11320

PLATE

12

01252-30616

BOLT

13

709-25-11310

PLATE

14

709-25-11920

SPRING

|14

700-23-13130

SPRING

15

700-22-11291

RETAINER

|15

700-22-11291

RETAINER

15A

709-25-11910

RETAINER

16

700-22-11321

PLUG

17

709-25-11890

CASE

|17

700-22-11332

COVER

|17

700-22-11331

COVER

18

01252-30650

BOLT

|18

01252-30616

BOLT

19

07000-03022

O-RING

20

709-26-11420

RETAINER

21

709-26-11450

SPRING

22

709-25-11751

CASE

23

709-25-11761

CASE

24

01252-30620

BOLT

25

709-25-11410

SPRING

26

709-25-11460

NIPPLE

27

07000-02015

O-RING

28

07002-02434

O-RING

29

709-25-11430

PLUG

30

07002-02434

O-RING
