Запчасти Komatsu PC60-6 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (EXCEPT СПЕЦИФ-Я С ОТВАЛОМ) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

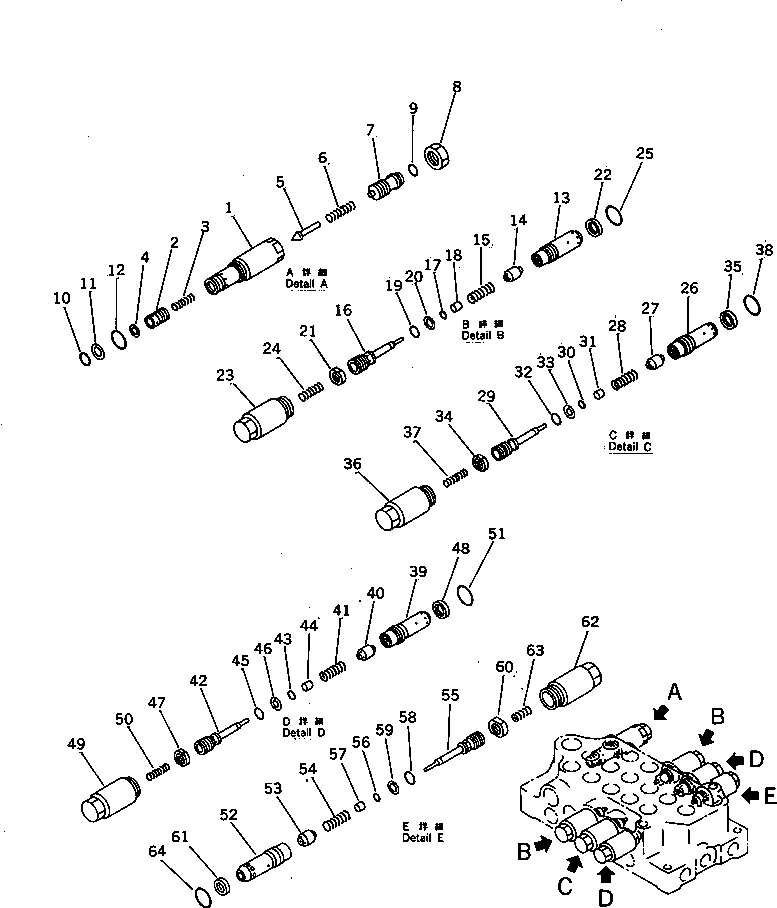

Схема запчастей Komatsu PC60-6 - ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (EXCEPT СПЕЦИФ-Я С ОТВАЛОМ) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

Артикул

Название

Примечание

Количество

|1

709-25-13104

VALVE ASS'Y

|1

709-25-13103

VALVE ASS'Y

|1

709-25-13102

VALVE ASS'Y

|1

709-25-13101

VALVE ASS'Y

|1

709-20-51800

RELIEF VALVE ASS'Y

1

SLEEVE

2

VALVE

3

709-20-51270

SPRING

4

700-20-51240

RING

5

700-80-61190

POPPET

6

709-20-51231

SPRING

7

709-20-51280

SCREW

8

01582-11411

NUT

9

07000-02011

O-RING

10

700-22-11410

O-RING

11

700-80-64220

RING,BACK-UP

12

07002-02434

O-RING

|13

709-20-61800

VALVE ASS'Y,SUCTION AND SAFETY

13

VALVE

14

POPPET

15

SPRING

16

PISTON

17

O-RING

18

SEAL

19

O-RING

20

RING,BACK-UP

21

NUT

22

SEAL

23

709-20-61110

SLEEVE

24

709-20-61160

SPRING

25

709-25-11390

O-RING

|26

709-20-61900

VALVE ASS'Y,SUCTION AND SAFETY

26

VALVE

27

POPPET

28

SPRING

29

PISTON

30

O-RING

31

SEAL

32

O-RING

33

RING,BACK-UP

34

NUT

35

SEAL

36

709-20-61110

SLEEVE

37

709-20-61160

SPRING

38

709-25-11390

O-RING

|39

709-20-61700

VALVE ASS'Y,SUCTION AND SAFETY

39

VALVE

40

POPPET

41

SPRING

42

PISTON

43

O-RING

44

SEAL

45

O-RING

46

RING,BACK-UP

47

NUT

48

SEAL

49

709-20-61110

SLEEVE

50

709-20-61160

SPRING

51

709-25-11390

O-RING

|52

709-20-61301

VALVE ASS'Y,SUCTION AND SAFETY

52

VALVE

53

POPPET

54

SPRING

55

PISTON

56

O-RING

57

SEAL

58

O-RING

59

RING,BACK-UP

60

NUT

61

SEAL

62

709-20-61110

SLEEVE

63

709-20-61160

SPRING

64

709-25-11390

O-RING

Выбрано товаров: 73
