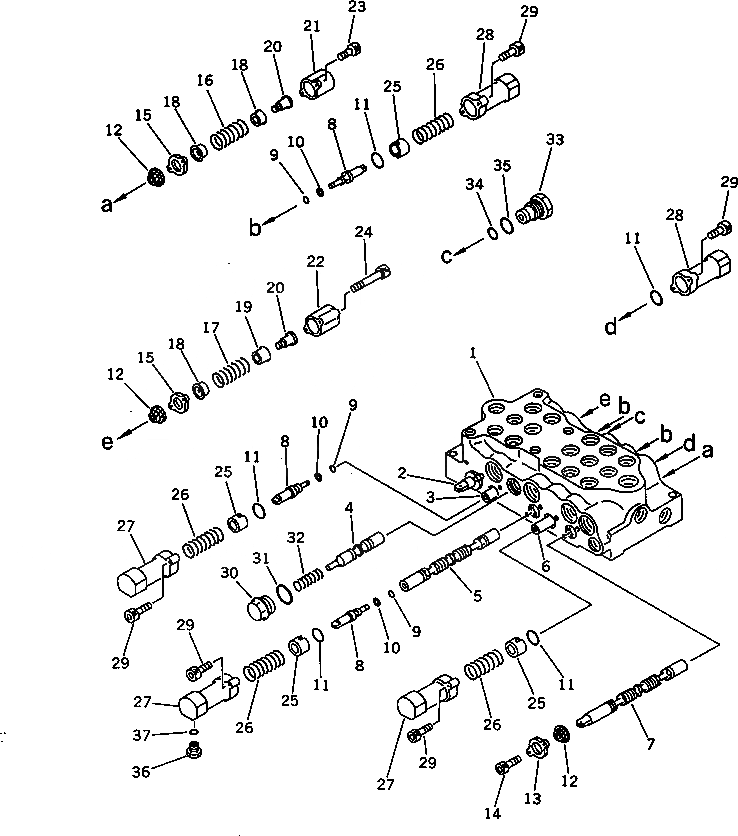

Запчасти Komatsu PC60-6 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-26-13104

VALVE ASS'Y

|1

709-26-13103

VALVE ASS'Y

|1

709-26-13102

VALVE ASS'Y

|1

709-26-13101

VALVE ASS'Y

1

BODY,VALVE

2

SPOOL,L.H. TRAVEL

|2

SPOOL,L.H. TRAVEL

3

SPOOL,ARM LOW

4

SPOOL,SWING PRIORITY

5

SPOOL,SWING

|5

SPOOL,SWING

6

SPOOL,BOOM HIGH

|6

SPOOL,BOOM HIGH

7

SPOOL,SERVICE

8

709-26-11410

JOINT

9

07000-11003

O-RING

10

07001-01003

RING,BACK-UP

11

07000-03022

O-RING

12

709-25-11290

SEAL

13

709-25-11320

PLATE

14

01252-30616

BOLT

15

709-25-11310

PLATE

16

700-23-13130

SPRING

|16

700-23-13130

SPRING

17

700-25-11920

SPRING

18

700-22-11291

RETAINER

|18

700-22-11291

RETAINER

19

709-25-11910

RETAINER

20

700-22-11321

PLUG

21

700-22-11332

COVER

|21

700-22-11332

COVER

|21

700-22-11331

COVER

22

709-25-11890

CASE

23

01252-30616

BOLT

|23

01252-30616

BOLT

24

01252-30650

BOLT

25

709-26-11420

RETAINER

26

709-26-11450

SPRING

27

709-25-11761

CASE

28

709-25-11751

CASE

29

01252-30620

BOLT

30

709-25-11430

PLUG

31

07002-02434

O-RING

32

709-25-11410

SPRING

33

709-25-11460

NIPPLE

34

07000-02015

O-RING

35

07002-02434

O-RING

36

07040-11409

PLUG

37

07002-01423

O-RING
