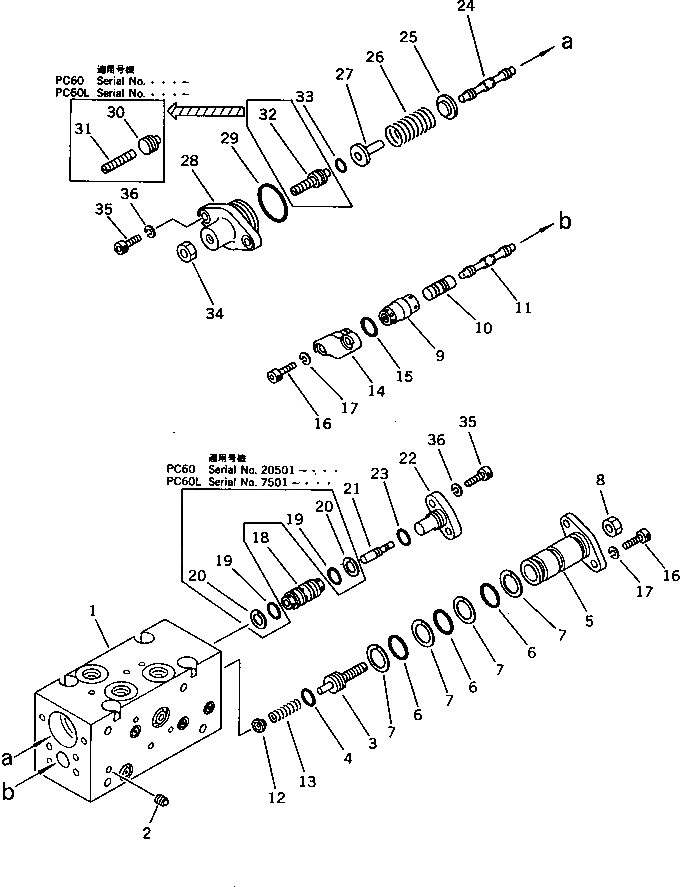

Запчасти Komatsu PC60-5 CUT OFF И NEGATIVE УПРАВЛЯЮЩ. КЛАПАН¤ ПЕРЕДН. (КРОМЕ ЯПОН.) ГИДРАВЛИКА

|$0

708-21-01032

PUMP ASS'Y,(HPV 35+35)

|$1

708-21-01031

PUMP ASS'Y,(HPV 35+35)

|$2

708-21-01030

PUMP ASS'Y,(HPV 35+35)

|$3

708-21-10401

PUMP ASS'Y,(HPV 35+35)

|$5

708-21-07111

SERVO VALVE ASS'Y,FRONT

|$6

708-21-07110

SERVO VALVE ASS'Y,FRONT

|$7

708-21-15101

SERVO VALVE ASS'Y,FRONT

|$9

708-21-07511

VALVE ASS'Y

|$10

708-21-07510

VALVE ASS'Y

|$11

708-21-17100

VALVE ASS'Y

|$12

708-23-07042

BODY ASS'Y

|$13

708-23-07041

BODY ASS'Y

|$14

708-23-07040

BODY ASS'Y

1

BODY

1

BODY

2

EXPANDER

2

PLUG

3

708-23-17260

PLUG

4

07000-02010

O-RING

5

708-25-17131

COVER

6

07000-12021

O-RING

7

07001-02021

RING,BACK-UP

8

01580-10806

NUT

9

708-23-17230

SLEEVE

10

708-23-17220

PISTON

11

708-25-17141

SPOOL

11

708-25-17140

SPOOL

12

708-25-17180

SEAT

13

708-23-17280

SPRING

14

708-25-17170

COVER

15

07000-02014

O-RING

16

708-25-15320

BOLT

16

01252-30616

BOLT

17

01602-20619

WASHER,SPRING

18

708-25-17211

SLEEVE

18

708-25-17210

SLEEVE

19

07000-12012

O-RING

20

07001-02012

RING,BACK-UP

21

708-25-17220

PISTON

22

708-25-17230

COVER

23

07000-02012

O-RING

24

708-25-17141

SPOOL

24

708-25-17140

SPOOL

25

708-25-17370

SEAT

25

708-25-17240

SEAT

26

708-25-17250

SPRING

27

708-25-17260

SEAT

28

708-25-17350

COVER

29

07000-03028

O-RING

30

708-25-17410

PLUG

31

708-25-15340

SCREW

32

708-25-17360

PLUG

33

07000-01009

O-RING

34

01580-10806

NUT

35

708-25-15320

BOLT

35

01252-30616

BOLT

36

01602-20619

WASHER,SPRING
