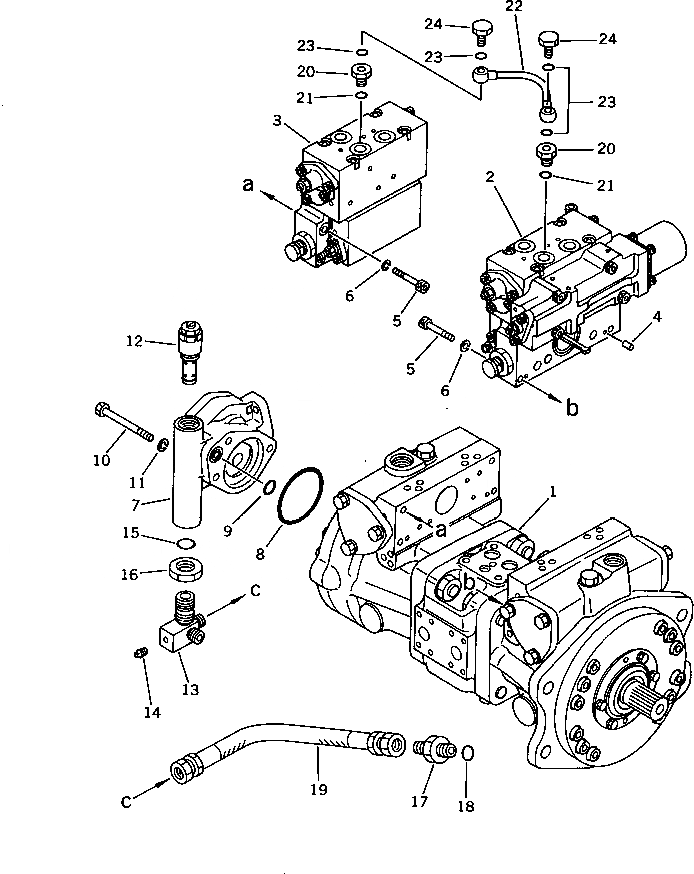

Запчасти Komatsu PC60-5 ГИДР. НАСОС. БЛОК (КРОМЕ ЯПОН.) ГИДРАВЛИКА
№
Артикул
Название
Примечание
Количество
|$0
708-21-01032
PUMP ASS'Y,(HPV 35+35)
|$1
708-21-01031
PUMP ASS'Y,(HPV 35+35)
|$2
708-21-01030
PUMP ASS'Y,(HPV 35+35)
|$3
708-21-10401
PUMP ASS'Y,(HPV 35+35)
1
708-21-01240
PUMP SUB ASS'Y
1
708-21-11400
PUMP SUB ASS'Y
2
708-21-07111
SERVO VALVE ASS'Y,FRONT
2
708-21-07110
SERVO VALVE ASS'Y,FRONT
2
708-21-15101
SERVO VALVE ASS'Y,FRONT
3
708-21-07211
SERVO VALVE ASS'Y,REAR
3
708-21-07210
SERVO VALVE ASS'Y,REAR
3
708-21-16101
SERVO VALVE ASS'Y,REAR
4
04020-00616
PIN,DOWEL
5
708-25-19130
BOLT
6
01602-00825
WASHER,SPRING
7
704-24-24401
GEAR PUMP ASS'Y
7
704-24-24400
GEAR PUMP ASS'Y
8
07000-02085
O-RING
9
07000-02018
O-RING
10
01010-31080
BOLT
11
01602-01030
WASHER,SPRING
12
708-23-14801
VALVE ASS'Y
12
708-23-14800
VALVE ASS'Y
13
708-23-19110
ELBOW
14
07042-30108
PLUG
15
07002-02434
O-RING
16
07239-12410
NUT
17
07230-10315
UNION
18
07002-02034
O-RING
19
07102-20303
HOSE
20
706-46-53260
PLUG
21
07002-01423
O-RING
22
708-21-19120
TUBE
23
07000-02012
O-RING
24
706-46-53180
BOLT,EYE
Выбрано товаров: 35
