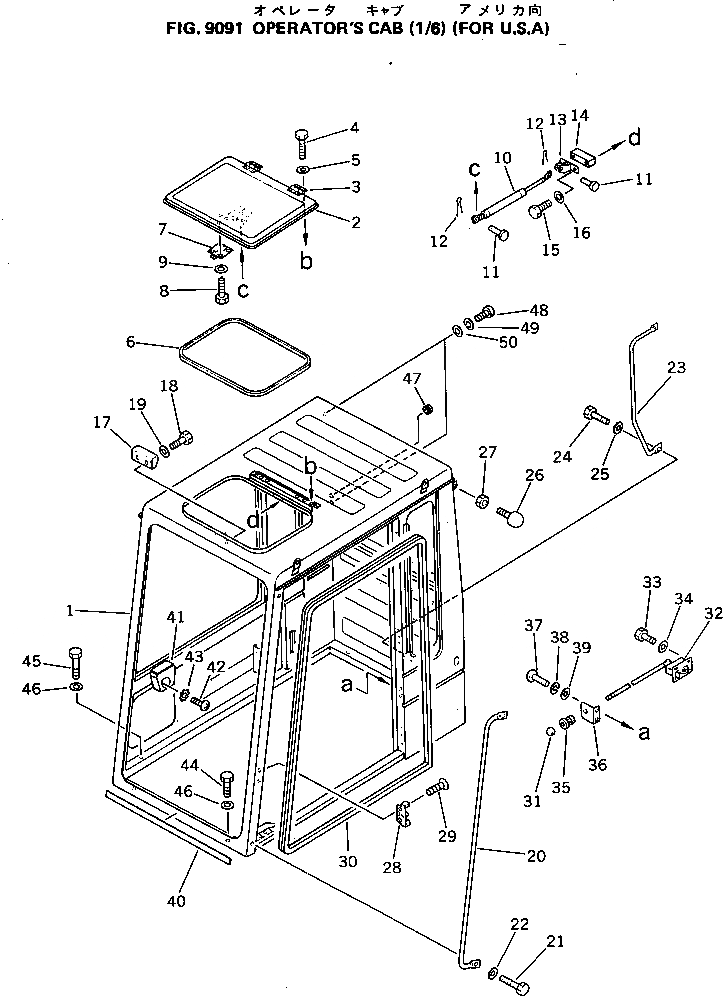

Запчасти Komatsu PC60-5 КАБИНА (/) (ДЛЯ США) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

|$0

21K-54-00421

OPERATOR'S CAB ASS'Y

|$1

21K-54-00420

OPERATOR'S CAB ASS'Y

1

205-54-71114

CAB

2

205-54-71142

COVER

3

205-54-72680

HINGE (WELDED)

4

01010-50612

BOLT

5

01643-30623

WASHER

6

205-54-71551

SEAL

7

205-54-72470

LOCK ASS'Y

8

01010-50616

BOLT

9

01643-30623

WASHER

10

205-54-63650

GAS SPRING ASS'Y

11

04205-10825

PIN

12

04050-12012

PIN,COTTER

13

205-54-72511

BRACKET

14

01010-50616

BOLT

15

01643-30623

WASHER

16

205-54-72520

BRACKET

17

01010-50616

BOLT

18

01643-30623

WASHER

19

205-54-72531

GRIP

20

01010-51025

BOLT

21

01643-31032

WASHER

22

205-54-72541

GRIP

23

01010-51025

BOLT

24

01643-31032

WASHER

25

09453-00002

STOPPER

26

01580-11210

NUT

27

205-54-71731

STRIKER

28

01224-40820

SCREW

29

205-54-71560

TRIM

30

205-54-72840

KNOB

31

20G-54-12110

LOCK ASS'Y

32

01010-50620

BOLT

33

01643-30623

WASHER

34

205-54-72830

GROMMET

35

205-54-72820

BRACKET

36

01220-40620

SCREW

37

01602-20619

WASHER,SPRING

38

01641-20608

WASHER

39

09415-00706

CAP

40

01220-40410

SCREW

41

01601-20410

WASHER,SPRING

42

01641-20405

WASHER

43

201-54-23221

ASHTRAY

44

01370-00410

SCREW

45

01611-04045

WASHER

46

205-54-76480

PLATE

47

01010-51245

BOLT

48

01010-51265

BOLT

49

01643-31232

WASHER

50

205-06-62350

ANTENNA ASS'Y,(WITH RADIO)

51

01220-40420

SCREW,(WITH RADIO)
