Запчасти Komatsu PC60-5 МОТОР ХОДА (/) ГИДРАВЛИКА

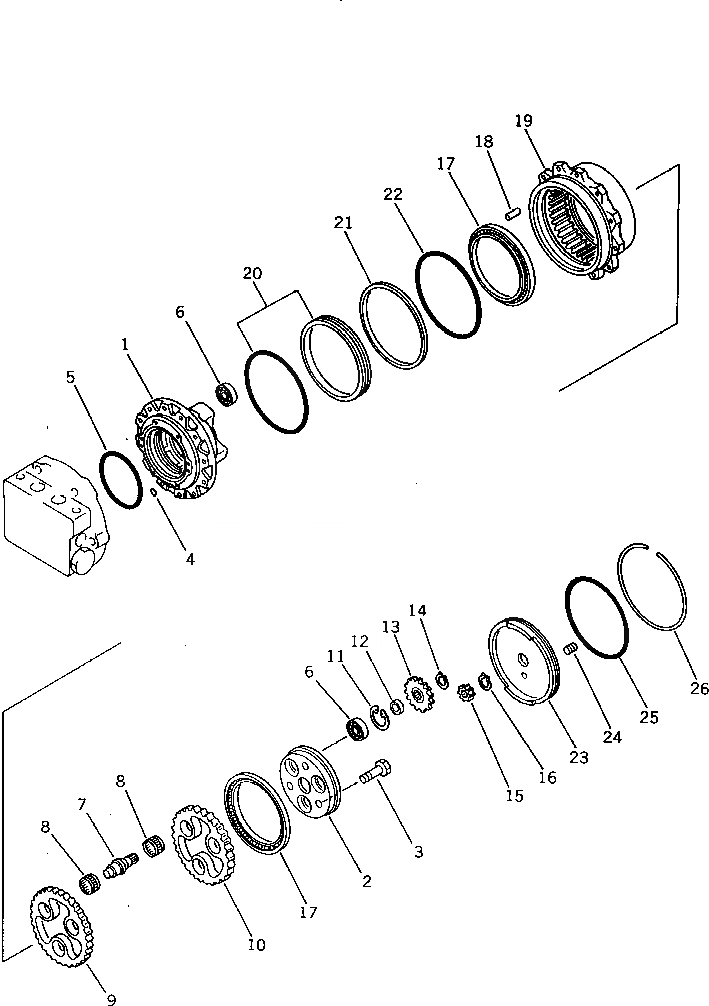

Схема запчастей Komatsu PC60-5 - МОТОР ХОДА (/) ГИДРАВЛИКА

Артикул

Название

Примечание

Количество

|1

201-60-51102

TRAVEL MOTOR ASS'Y

|1

201-60-51101

TRAVEL MOTOR ASS'Y

|1

201-60-51100

TRAVEL MOTOR ASS'Y

|1

TZ880A1132-00

SPINDLE ASS'Y

1

SPINDLE

2

FLANGE,HOLD

3

TZ800A1019-00

BOLT,REAMER

4

07000-11006

O-RING (KIT)

5

TZJW1516-G35-9

O-RING (KIT)

|6

TZ860A1104-00

GEAR ASS'Y

6

BEARING

7

SHAFT,CRANK

8

BEARING

|9

TZ860A1204-00

GEAR

9

GEAR

10

GEAR

11

TZ860A1013-00

SNAP RING SET

12

TZ860A1014-00

PIECE,DISTANCE

13

TZ851A1007-00

SPUR GEAR ASS'Y

14

04064-02512

RING,SNAP

15

TZ881A1006-00

GEAR,INPUT

16

TZJB2804-S19

RING,SNAP

17

TZ850A1021-00

BEARING

18

TZ800A1017-00

PIN

19

TZ860A1001-00

HUB

|20

TZ192-230-30-B

FLOATING SEAL ASS'Y (KIT)

20

TZES100-192-B

SEAL,FLOATING

21

TZ861A1010-00

PIECE,DISTANCE

22

07000-15230

O-RING (KIT)

23

TZ860A1008-00

COVER

24

TZGM3-8

PLUG

25

TZJW1516-G49-9

O-RING (KIT)

26

TZ860A1018-00

RING

27

TZ881A9000-00

SEAL KIT

|27

07000-15230

O-RING

|27

TZJW1516-G49-9

O-RING

|27

TZJW1516-G35-9

O-RING

|27

TZ192-230-30-B

FLOATING SEAL ASS'Y

|27

07000-11006

O-RING

|27

TZ15Z-22-42-10

SEAL,OIL

|27

TZJW1516-G28-9

O-RING

|27

07000-12140

O-RING

|27

07000-11009

O-RING

|27

07000-12016

O-RING

|27

TZJB2401-P26-9

O-RING

|27

07002-02034

O-RING

|27

TZSUN-2BG140

RING,BACK-UP

|27

TZSUN-2WG28

RING,BACK-UP

Выбрано товаров: 48
