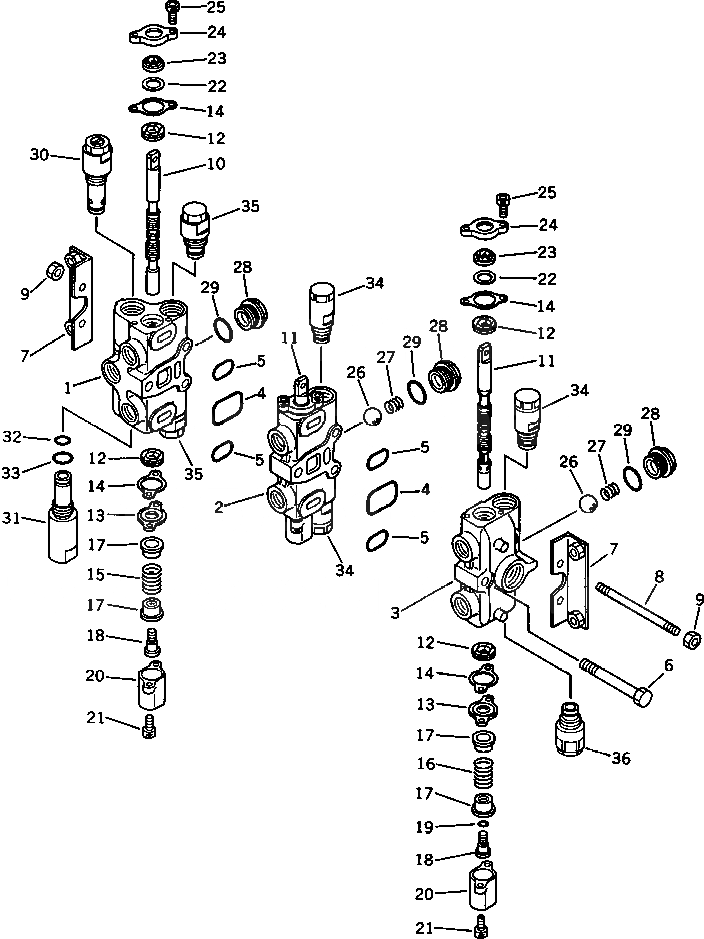

Запчасти Komatsu PC60-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-23-45000

VALVE ASS'Y

1

BODY

2

BLOCK

3

COVER

4

07000-13040

O-RING

5

700-22-11450

O-RING

6

700-23-13140

BOLT

7

700-26-11170

ANGLE

8

700-23-13110

STUD

9

01580-10806

NUT

10

SPOOL,(FOR R.H. TRAVEL)

11

SPOOL,(FOR BUCKET, BOOM)

12

700-22-11252

U-PACKING

13

700-22-11281

PLATE

14

700-22-11420

GASKET

15

700-23-13130

SPRING

16

700-22-11311

SPRING

17

700-22-11290

RETAINER

18

700-22-11320

PLUG

19

07000-11006

O-RING

20

700-22-11331

COVER

21

01252-30616

BOLT

22

700-22-11430

COLLAR

23

700-22-11261

SEAL

24

700-22-11270

PLATE

25

01252-30616

BOLT

26

700-22-12340

BALL

27

700-22-12350

SPRING

28

700-22-11351

PLUG

29

07002-12434

O-RING

30

700-20-55001

VALVE ASS'Y,MAIN RELIEF

31

700-23-13150

NIPPLE

32

07000-12014

O-RING

33

07002-02434

O-RING

34

700-20-66001

VALVE ASS'Y,SUCTION AND SAFETY

35

700-20-61002

VALVE ASS'Y,SUCTION

36

700-20-68000

VALVE ASS'Y,SAFETY
