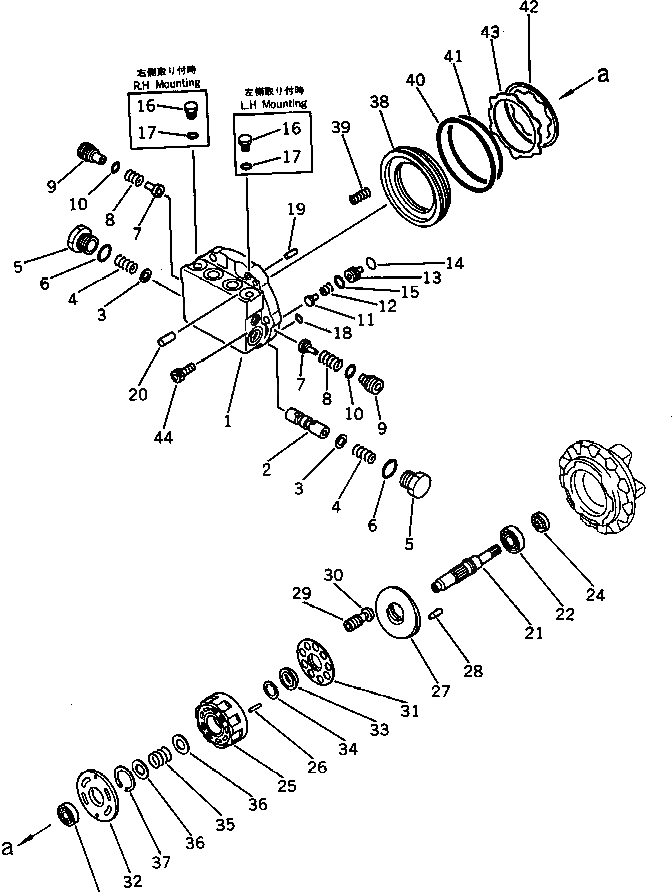

Запчасти Komatsu PC60-3 МОТОР ХОДА (/) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

201-60-00120

TRAVEL MOTOR ASS'Y

|$1

201-60-00130

TRAVEL MOTOR ASS'Y

|$2

TZ861A2100-01

FLANGE SPOOL ASS'Y

1

FLANGE

2

SPOOL

3

TZ860A2052-00

RETAINER

4

TZ860A2056-00

SPRING

5

TZ860A2051-00

PLUG

6

07000-13026

O-RING

7

TZ860A2054-01

VALVE

8

TZ860A2055-01

SPRING

9

TZ860A2053-01

PLUG

10

07000-12016

O-RING

11

TZ860A2019-00

VALVE

12

TZ860A2020-00

SPRING

13

TZ860A2018-00

SEAT

14

TZ100A2022-00

RING

15

07000-11009

O-RING

16

TZ100A2021-00

PLUG

17

07002-12034

O-RING

18

07000-11006

O-RING

19

TZJB1354-4-10

PIN

20

TZJB1354-8-25

PIN

21

TZ860A2002-00

SHAFT

21

TZ900A2002-01

SHAFT

22

06000-06204

BEARING

23

06000-06202

BEARING

24

TZSBI-20-40-11

O-RING

25

TZ860A2004-00

BLOCK

26

TZJB13542.5-12

PIN

27

TZ850A2003-01

PLATE

28

TZ800A2017-00

PIN

29

PISTON

30

SHOE

31

TZ850A2007-01

PLATE

32

TZ860A2009-01

PLATE

33

TZ800A2008-00

BALL

34

TZ850A2011-01

WASHER KIT

35

TZ860A2014-00

SPRING

36

TZ800A2010-00

WASHER

37

TZIRTW-40

RING

38

TZ800A2012-00

PISTON

39

TZ800A2013-00

SPRING

40

07000-12140

O-RING

41

TZJW1516-G28-9

O-RING

42

TZ800A2015-00

PLATE

43

TZ800A2016-00

PLATE

44

01252-31030

BOLT
