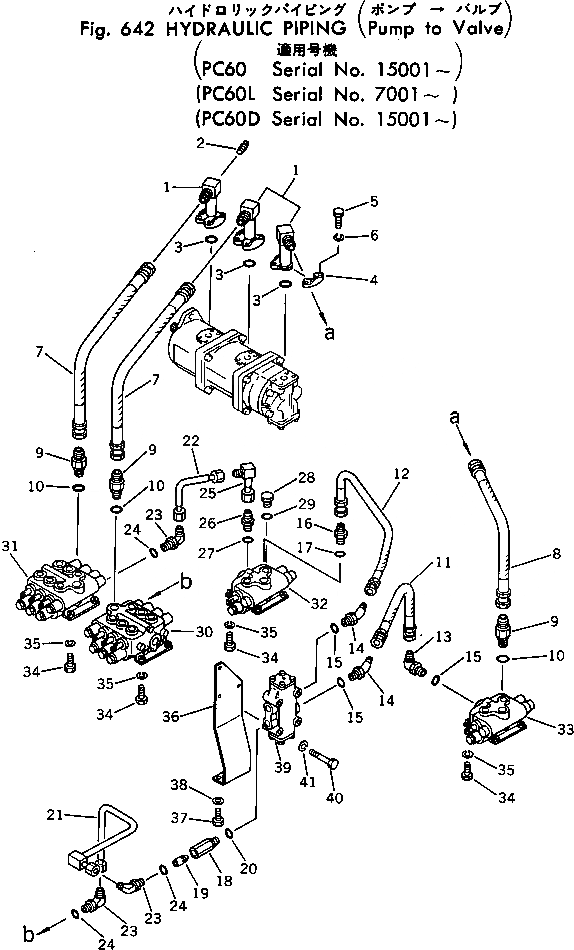

Запчасти Komatsu PC60-2 ГИДРОЛИНИЯ (ИЗ НАСОСА В КЛАПАН) (PC) (PCD) ГИДРАВЛИКА

1

201-62-31170

TUBE

2

07042-20108

PLUG

3

07000-13025

O-RING

4

07371-30638

FLANGE,SPLIT

5

07372-20830

BOLT

6

01602-20825

WASHER,SPRING

7

07123-00607

HOSE

8

07123-00605

HOSE

9

201-62-31820

NIPPLE

10

07002-12434

O-RING

11

07123-00404

HOSE

12

07123-00405

HOSE

13

07235-10422

ELBOW

14

07236-10422

ELBOW

15

07002-12034

O-RING

16

232-60-14271

NIPPLE

17

07002-12434

O-RING

18

20X-62-11260

BODY

19

20X-62-11270

POPPET

20

07002-12034

O-RING

21

201-62-31340

TUBE

22

201-62-31360

TUBE

23

07235-10422

ELBOW

24

07002-12034

O-RING

25

201-62-31350

TUBE

26

07230-10422

UNION

27

07002-12034

O-RING

28

07040-12012

PLUG

29

07002-12034

O-RING

30

700-23-46000

VALVE ASS'Y

31

700-23-45000

VALVE ASS'Y

32

700-21-38001

VALVE ASS'Y

33

700-21-39000

VALVE ASS'Y

34

01010-50825

BOLT

35

01602-20825

WASHER,SPRING

36

201-62-31330

BRACKET

37

01010-51225

BOLT

38

01643-31232

WASHER

39

702-15-14002

VALVE ASS'Y

40

01010-51075

BOLT

41

01602-21030

WASHER,SPRING
