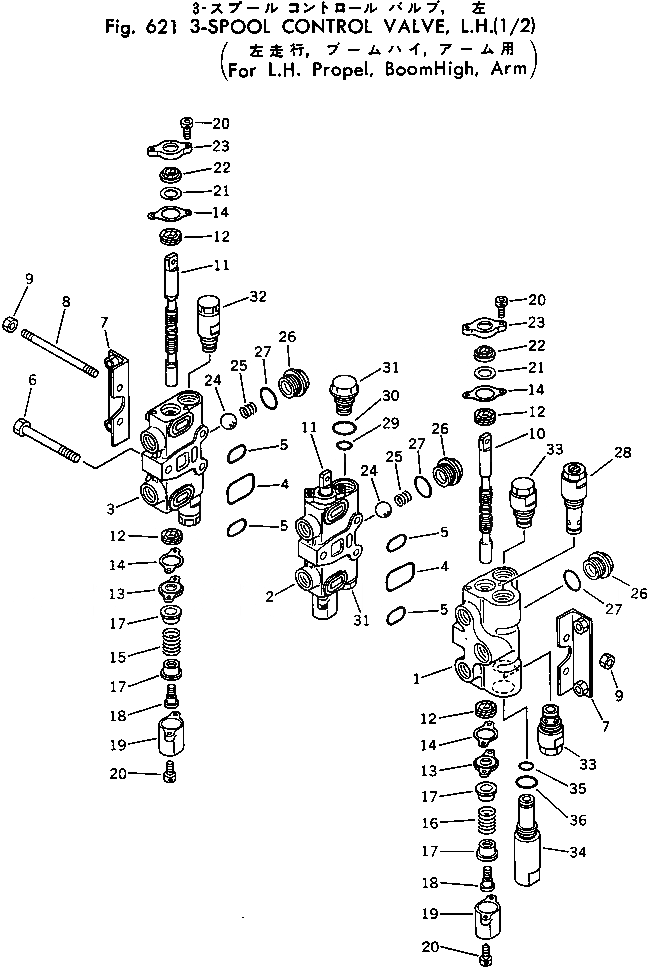

Запчасти Komatsu PC60-2 3-Х СЕКЦИОНН. КОНТРОЛЬН. КЛАПАН¤ЛЕВ.(ДЛЯ ЛЕВ.PКАНАТL¤СТРЕЛА ВЫС.¤РУКОЯТЬ)(/ ГИДРАВЛИКА

|1

700-23-46000

VALVE ASS'Y

1

BODY,VALVE

2

BLOCK,VALVE

3

COVER

4

07000-13040

O-RING

5

700-22-11450

O-RING

6

700-23-13140

BOLT

7

700-26-11170

ANGLE

8

700-24-13110

STUD

9

01580-10806

NUT

10

SPOOL

11

SPOOL

12

700-22-11252

U-PACKING

13

700-22-11281

PLATE

14

700-22-11420

GASKET

15

700-22-11311

SPRING

16

700-23-13130

SPRING

17

700-22-11290

RETAINER

18

700-22-11320

PLUG

19

700-22-11331

COVER

20

01252-30616

BOLT

21

700-22-11430

COLLAR

22

700-22-11261

SEAL,DUST

23

700-22-11270

PLATE

24

700-22-12340

BALL

25

700-22-12350

SPRING

26

700-22-11351

PLUG

27

07002-12434

O-RING

28

700-20-55001

VALVE ASS'Y,MAIN RELIEF

29

07002-02434

O-RING

30

07002-02434

O-RING

31

700-22-11360

PLUG

32

700-20-66001

VALVE ASS'Y,SUCTION AND SAFETY

33

700-20-61002

VALVE ASS'Y,SUCTION

34

700-23-13150

NIPPLE

35

07000-12014

O-RING

36

07002-02434

O-RING
