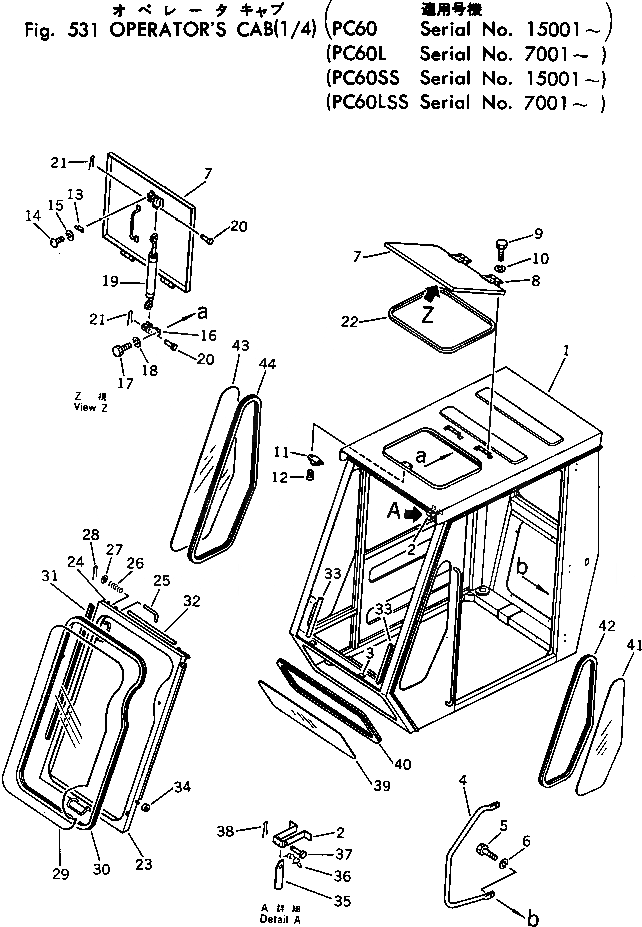

Запчасти Komatsu PC60-2 КАБИНА (/) (PC) (PCSS) ОСНОВНАЯ РАМА И КАБИНА

|1

201-54-00114

CAB ASS'Y

1

201-54-32110

CAB ASS'Y

2

201-54-22920

BRACKET (WELDED)

3

201-54-22451

SEAT

4

205-54-63360

HANDLE

5

01010-31030

BOLT

6

01602-21030

WASHER,SPRING

7

201-54-27461

COVER

8

205-54-63490

HINGE

9

01010-30612

BOLT

10

01602-00619

WASHER,SPRING

11

203-54-11290

CATCHER

12

01224-40410

SCREW

13

205-54-63630

HOOK

14

01220-40412

SCREW

15

01602-00410

WASHER,SPRING

16

205-54-63640

BRACKET

17

01010-30820

BOLT

18

01602-00825

WASHER,SPRING

19

205-54-63650

GAS SPRING ASS'Y

20

04205-10825

PIN

21

04050-12012

PIN,COTTER

22

201-54-27730

SEAL

|23

201-54-00143

FRONT DOOR ASS'Y

23

20B-54-27121

DOOR,FRONT

23

201-54-22580

LOCK ASS'Y,L.H.

|23

201-54-22870

LOCK ASS'Y,R.H.

24

201-54-22590

BRACKET,L.H. (WELDED)

|24

201-54-22860

BRACKET,R.H. (WELDED)

25

201-54-22610

ROD

26

154-54-22510

SPRING

27

01641-21016

WASHER

28

04025-00320

PIN,SPRING

29

201-54-27180

GLASS

30

09410-00323

STRIP,WEATHER

31

201-54-27360

SEAL

32

201-54-27320

SEAT

33

201-54-27370

SEAL

34

205-54-66240

ROLLER

35

201-54-27330

LEVER

36

201-54-22960

SPRING

37

135-43-16460

PIN

38

04050-13015

PIN,COTTER

39

201-54-27170

GLASS

40

09410-00190

STRIP,WEATHER

41

201-54-27140

GLASS

42

09410-00185

STRIP,WEATHER

43

201-54-27450

GLASS

44

09410-00237

STRIP,WEATHER
