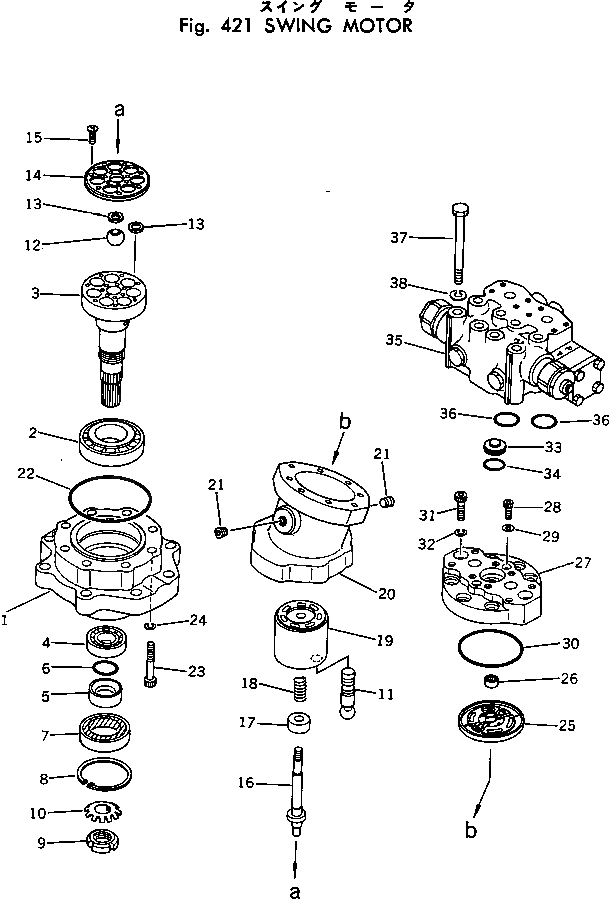

Запчасти Komatsu PC60-2 МОТОР ПОВОРОТА ПОВОРОТН. СИСТЕМА

|1

706-73-04701

SWING MOTOR ASS'Y

|1

706-73-43002

MOTOR ASS'Y

1

COVER,FRONT

2

BEARING (KIT)

3

SHAFT,DRIVE (KIT)

4

BEARING

5

RING

6

O-RING (KIT)

7

SEAL,OIL (KIT)

8

RING,SNAP

9

NUT

10

WASHER (KIT)

11

PISTON ASS'Y (KIT)

12

BALL,CENTER (KIT)

13

HOLDER (KIT)

14

RETAINER (KIT)

15

SCREW (KIT)

16

SHAFT,CENTER (KIT)

17

RING,CENTER (KIT)

18

SPRING (KIT)

19

BLOCK,CYLINDER (KIT)

20

CASE,PUMP

21

PLUG

22

O-RING (KIT)

23

BOLT

24

WASHER,SPRING

25

PLATE,VALVE

26

BEARING

27

COVER,END

28

BOLT (KIT)

29

GASKET,SEAL (KIT)

30

O-RING

31

BOLT

32

01602-01030

WASHER,SPRING

33

706-73-40830

CAP

34

07000-03028

O-RING

35

706-73-71301

BRAKE VALVE ASS'Y

36

07000-13025

O-RING

37

01011-51000

BOLT

38

01602-21030

WASHER,SPRING

|2

706-98-00011

DRIVE SHAFT KIT

2

706-73-40880

BEARING

3

706-73-41862

SHAFT,DRIVE

6

07000-03030

O-RING

7

706-73-90180

SEAL,OIL

10

01658-23018

WASHER

11

706-73-41162

PISTON ASS'Y

12

706-73-41220

BALL,CENTER

13

706-73-41251

HOLDER

14

706-73-41263

RETAINER

15

706-73-41271

SCREW

16

706-73-41080

SHAFT,CENTER

17

706-73-41130

RING,CENTER

18

706-73-41110

SPRING

19

706-73-41091

BLOCK,CYLINDER

22

07000-02105

O-RING

28

706-73-40310

BOLT

29

07005-00612

GASKET

30

07000-02085

O-RING,SEAL
