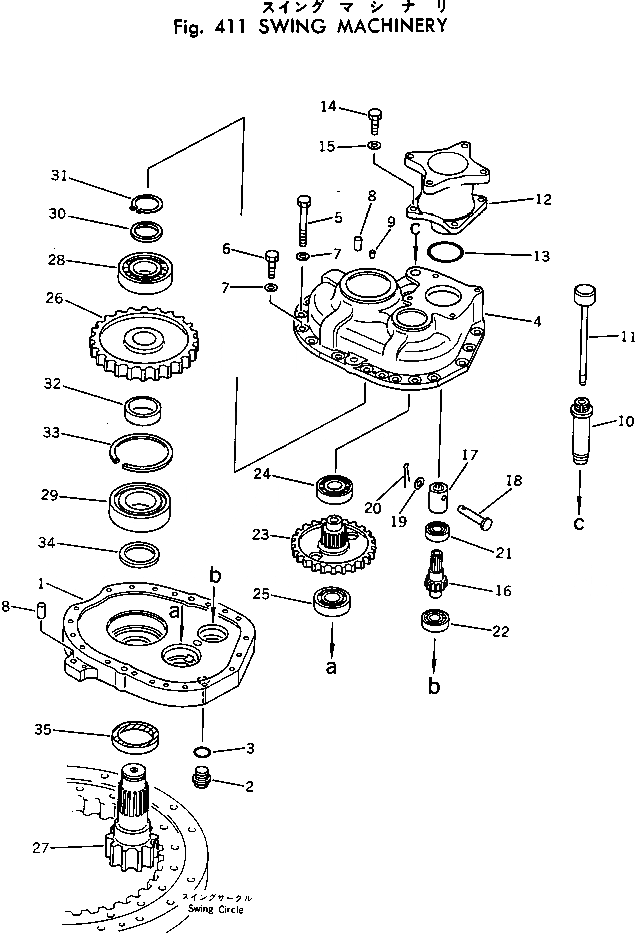

Запчасти Komatsu PC60-2 МЕХАНИЗМ ПОВОРОТА ПОВОРОТН. СИСТЕМА

1

20X-26-11111

CASE,LOWER

2

07044-12412

PLUG

3

07002-02434

O-RING

4

20X-26-11121

CASE,UPPER

5

01010-51285

BOLT

6

01010-51235

BOLT

7

01643-31232

WASHER

8

04020-01842

PIN,DOWEL

9

07049-01215

PLUG

10

201-26-11150

FILLER

11

201-26-11140

GAUGE,OIL LEVEL

12

201-26-21130

CAGE

13

07000-02075

O-RING

14

01010-31230

BOLT

15

01643-31232

WASHER

16

20X-26-11130

SHAFT

17

20T-26-11210

COUPLING

18

20T-26-11220

PIN

19

01641-20608

WASHER

20

04050-11610

PIN,COTTER

21

06044-00205

BEARING

22

06040-06305

BEARING,BALL

23

20X-26-11140

GEAR

24

06044-00307

BEARING,ROLLER

25

06040-06307

BEARING,BALL

26

20X-26-11150

GEAR

27

20X-26-11160

SHAFT

28

06044-00311

BEARING,ROLLER

29

06030-21313

BEARING,ROLLER

30

201-26-11430

COLLAR

31

04064-05520

RING,SNAP

32

20X-26-11170

COLLAR

33

04071-00140

RING,SNAP

34

20X-26-11180

SPACER

35

07012-00080

SEAL,OIL
