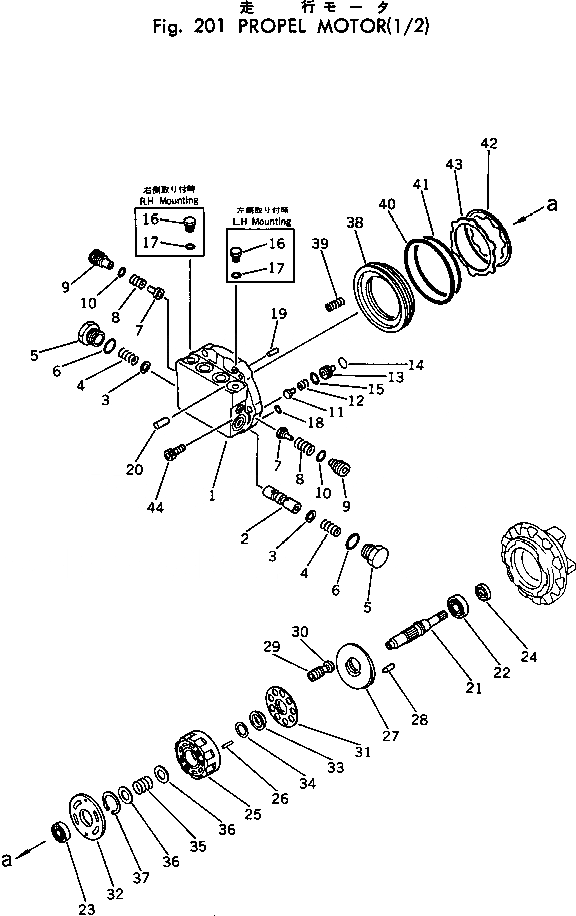

Запчасти Komatsu PC60-2 PКАНАТL МОТОР (/) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|1

201-60-00120

TRAVEL MOTOR ASS'Y

|1

201-60-00130

TRAVEL MOTOR ASS'Y

|1

FLANGE SPOOL ASS'Y

1

FLANGE,REAR

2

SPOOL

3

RETAINER,SPRING

4

SPRING

5

PLUG

6

TZB26-13026

O-RING

7

VALVE

8

SPRING

9

PLUG

10

07000-12016

O-RING

11

VALVE

12

SPRING

13

SEAT,VALVE

14

RING

15

07000-11009

O-RING

16

PLUG

17

07002-12034

O-RING

18

07000-11006

O-RING

19

PIN,DOWEL

20

PIN,DOWEL

21

SHAFT

|21

SHAFT

22

06000-06204

BEARING,BALL

23

06000-06202

BEARING,BALL

24

SEAL,OIL

25

BLOCK,CYLINDER

26

PIN,DOWEL

27

PLATE,SWASH

28

PIN

29

PISTON

30

SHOE,PISTON

31

PLATE,RETAINER

32

PLATE,TIMING

33

BALL,THRUST

34

WASHER

35

SPRING

36

WASHER

37

RING,SNAP

38

PISTON

39

SPRING

40

O-RING

41

O-RING

42

PLATE

43

PLATE

44

BOLT
