P.P.C. ОСНОВН. ЛИНИЯ

Запчасти Komatsu PC58UU-3 P.P.C. ОСНОВН. ЛИНИЯ ГИДРАВЛИКА

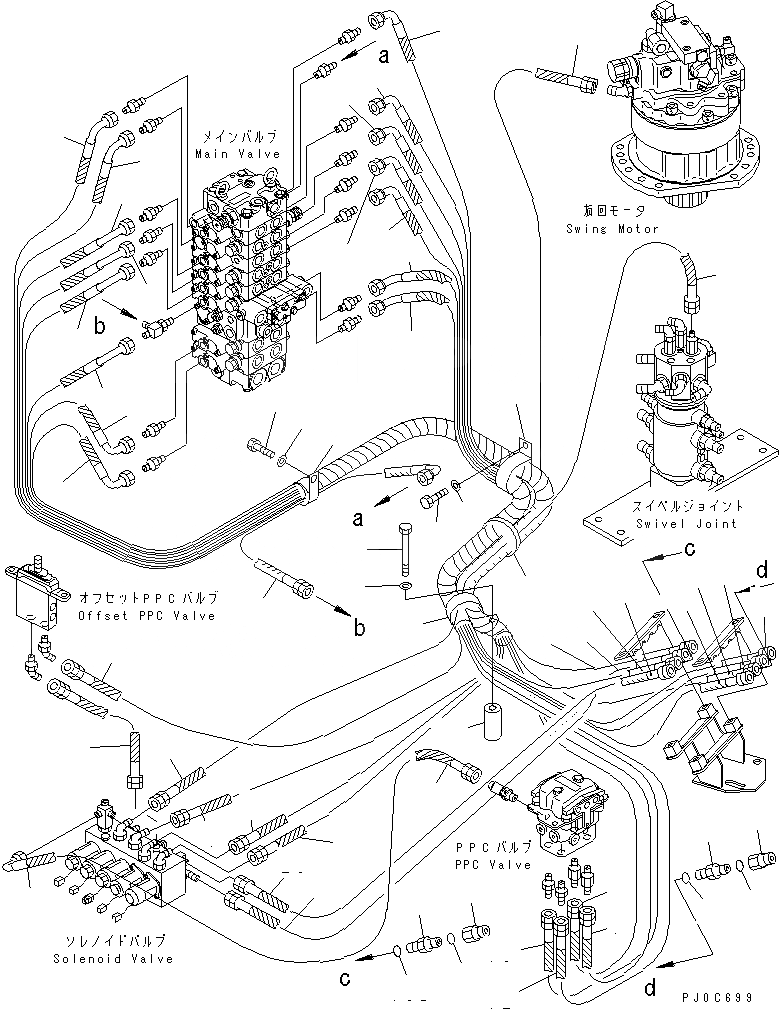

Схема запчастей Komatsu PC58UU-3 - P.P.C. ОСНОВН. ЛИНИЯ ГИДРАВЛИКА
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
8A
8B
8C
8D
9
9
10
10
11
11
12
12
13
13
14
14
15
15
15A
15B
15C
15D
16
16
17
18
19
20
21
21
22
23
24
24
25
25
26
26
27
28
29
30
31
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

20U-62-43560

HOSE¤ 2040MM,BLUE

2

20U-62-43550

HOSE¤ 2130MM,WHITE

3

20U-62-42480

HOSE¤ 1850MM,YELLOW

4

20U-62-42490

HOSE¤ 1780MM,WHITE-BLUE

5

20U-62-42330

HOSE¤ 1800MM,GREEN

6

20U-62-42510

HOSE¤ 2000MM,GREEN-YELLOW

7

20U-62-42520

HOSE¤ 2030MM,ORANGE-YELLOW

8

20U-62-42430

HOSE¤ 1150MM

8A

20U-62-43720

NIPPLE

8B

02896-11008

O-RING

8C

07002-11423

O-RING

8D

21W-62-42940

NIPPLE

9

20U-62-43530

HOSE¤ 1620MM,RED

10

20U-62-42320

HOSE¤ 1500MM,BLACK-YELLOW

11

20U-62-42530

HOSE¤ 1360MM,WHITE-RED

12

20U-62-42540

HOSE¤ 1570MM,BROWN-YELLOW

13

20U-62-43510

HOSE¤ 1600MM,BLACK

14

20U-62-43520

HOSE¤ 1640MM,ORANGE

15

20U-62-43540

HOSE¤ 1620MM,BROWN

15A

20U-62-43720

NIPPLE

15B

02896-11008

O-RING

15C

07002-11423

O-RING

15D

21W-62-42940

NIPPLE

16

22M-62-13480

CLIP

17

01010-81290

BOLT

18

01643-31232

WASHER

19

01010-81225

BOLT

20

01643-31232

WASHER

21

20U-62-42550

HOSE¤ 250MM

22

20U-62-42420

HOSE¤ 300MM,WHITE-BLUE

23

20U-62-42640

HOSE¤ 450MM

24

20U-62-42570

HOSE¤ 400MM,YELLOW

25

20U-62-42580

HOSE¤ 450MM,GREEN

26

02760-002A6

HOSE

27

08034-20823

BAND

28

419-09-11150

CLIP

29

01010-81020

BOLT

30

01643-31032

WASHER

31

419-64-13110

SPACER

Выбрано товаров: 39
