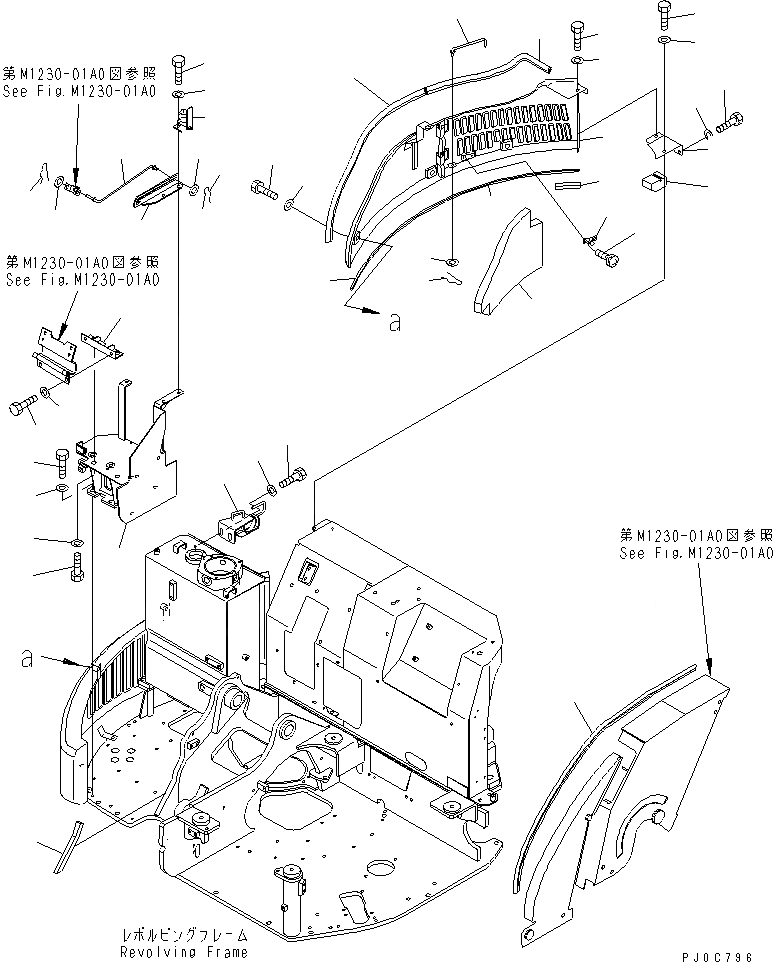

Запчасти Komatsu PC58UU-3 ПЕРЕДН. КРЫШКА(БОКОВ. КРЫШКА) ЧАСТИ КОРПУСА

|1

20U-54-42801

COVER ASS'Y

1

20U-54-42811

COVER

2

20U-54-42820

SHEET

3

20U-54-42832

SEAL

|3

20U-54-42831

SEAL

3A

20U-54-42290

SEAL

4

20U-54-42841

SEAL

5

20U-54-42850

SEAL

6

20U-54-42860

SEAL

7

20U-54-42880

BAR

8

20B-54-12210

SPRING

9

01023-10406

SCREW

10

01641-20812

WASHER

11

04052-10833

PIN,SNAP

12

01010-71020

BOLT

13

01643-11032

WASHER

13A

01010-81020

BOLT

13B

01643-31032

WASHER

14

20U-54-42530

BRACKET

15

01010-81020

BOLT

16

01643-31032

WASHER

17

20U-54-42871

SEAL

18

20U-54-41641

BRACKET

19

01010-81225

BOLT

20

01643-31232

WASHER

21

20U-54-41621

BRACKET

22

22M-54-11442

BRACKET

23

01010-81025

BOLT

24

203-54-56970

WASHER

25

01643-31032

WASHER

26

22M-54-11451

ROD

27

01643-30823

WASHER

28

22L-54-13210

WASHER

29

04052-10833

PIN,SNAP

30

20U-54-41631

BRACKET

|31

20U-54-42930

COVER ASS'Y

31

20U-54-42921

COVER

32

20U-03-41431

SHEET

32A

01010-71020

BOLT

33

01010-81020

BOLT

33

01010-81020

BOLT

34

01643-31032

WASHER

35

01643-11032

WASHER

36

20U-54-42540

CUSHION
