Запчасти Komatsu PC58UU-3 ЛИНИЯ АКТУАТОРА ГИДРАВЛИКА

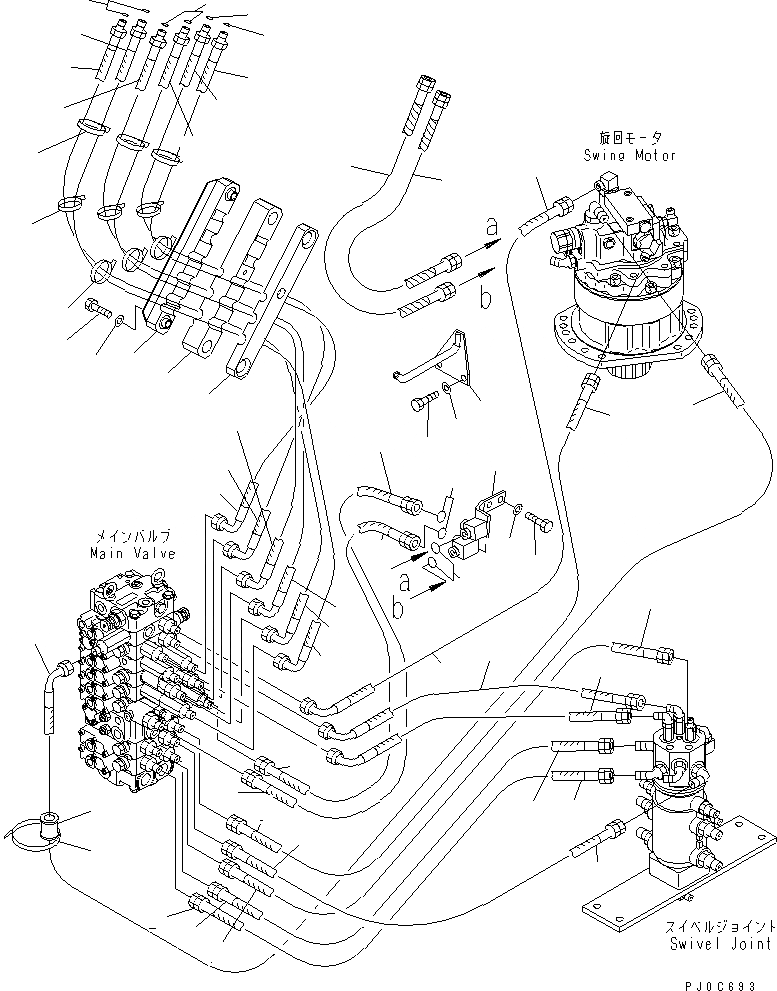

Схема запчастей Komatsu PC58UU-3 - ЛИНИЯ АКТУАТОРА ГИДРАВЛИКА
1
1
2
2
3
3
4
4
5
5
6
7
7
8
9
9
10
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
21
22
23
24
25
25
26
27
28
29
30
31
32
33
34
35
36
36
36

Артикул

Название

Примечание

Количество

1

20U-62-42840

HOSE, 740MM,BLACK-RED

2

02765-00407

HOSE, 700MM,ORANGE-YELLOW

3

20U-62-42830

HOSE, 640MM,BROWN-YELLOW

4

20U-62-42850

HOSE, 880MM,GREEN-YELLOW

5

02760-003A8

HOSE, 850MM

6

02760-00309

HOSE, 900MM,RED-YELLOW

7

02760-00309

HOSE, 900MM,BROWN

8

20U-62-42870

HOSE, 840MM,BLUE-YELLOW

9

20U-62-42880

HOSE, 1170MM,WHITE

10

07095-20420

CUSHION

11

08034-20834

BAND

12

20U-62-43610

HOSE, 1560MM,ORANGE

13

20U-62-43610

HOSE, 1560MM,GREEN

14

20U-62-43610

HOSE, 1560MM,BLUE

15

20U-62-43610

HOSE, 1560MM,RED

16

20U-62-43620

HOSE, 1550MM,RED-WHITE

17

20U-62-43620

HOSE, 1550MM,RED-WHTIE

18

02896-11012

O-RING

19

02896-11009

O-RING

20

02765-00403

HOSE,YELLOW

21

20U-62-42860

HOSE, 345MM,BLACK

22

20U-62-42910

HOSE

23

20U-62-42920

HOSE

24

20U-62-41560

BRACKET

25

02896-11012

O-RING

26

01010-81025

BOLT

27

01643-31032

WASHER

28

20U-62-41592

BRACKET

29

01010-81020

BOLT

30

01643-31032

WASHER

31

20U-62-41792

RUBBER

32

20U-62-41771

RUBBER

33

20U-62-41782

RUBBER

34

01010-81065

BOLT

35

01643-31032

WASHER

36

08034-20519

BAND

Выбрано товаров: 36
