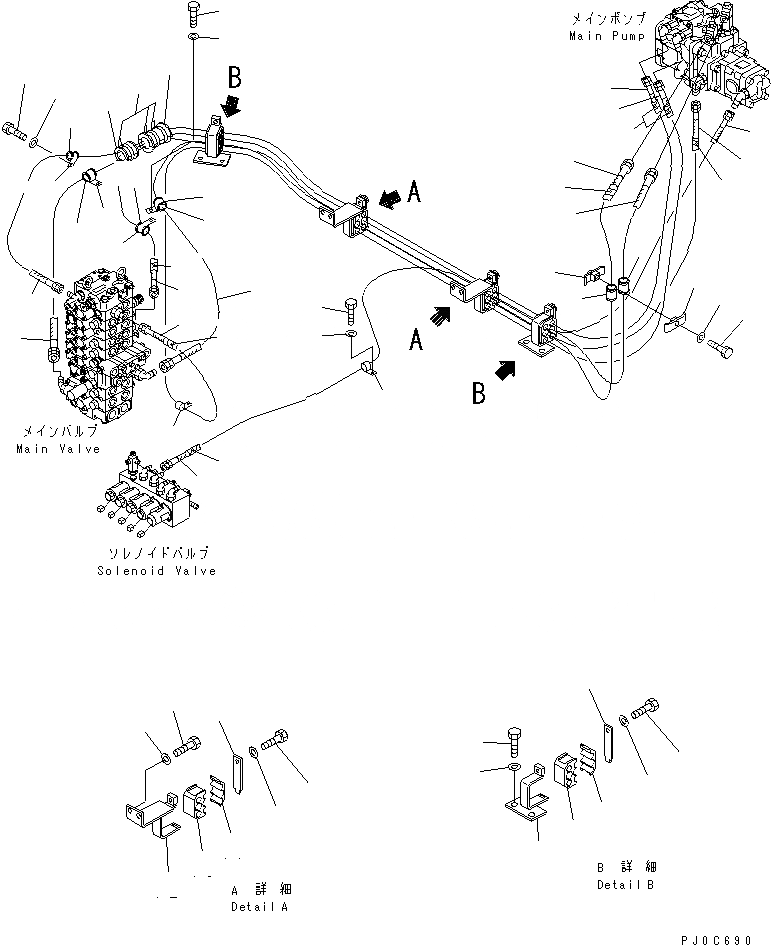

Запчасти Komatsu PC58UU-3 ЛИНИЯ ПОДАЧИ ГИДРАВЛИКА

1

02765-00426

HOSE, 2600MM,(GREEN)

2

02765-00425

HOSE, 2500MM,(BLUE)

3

02765-00327

HOSE, 2700MM,(ORANGE)

4

02765-00315

HOSE, 1500MM,(RED)

5

02765-00322

HOSE, 2200MM,(BROWN)

6

20U-62-42740

HOSE

6A

08210-01204

SPIRAL TUBE

6B

08210-01205

SPIRAL TUBE

6C

08210-01208

SPIRAL TUBE

6D

08210-01804

SPIRAL TUBE

7

22M-62-13311

CLAMP

8

22M-62-13321

CLAMP

9

07095-20420

CUSHION

10

01010-81050

BOLT

11

01643-31032

WASHER

12

20U-62-41191

BRACKET

13

20U-62-41150

BRACKET

14

20U-62-41140

BRACKET

15

01010-81225

BOLT

16

01643-31232

WASHER

17

20U-62-41161

CUSHION

18

20U-62-41171

CUSHION

19

01010-81025

BOLT

20

01643-31032

WASHER

21

01010-81220

BOLT

22

01643-31232

WASHER

23

04434-52712

CLIP

24

07095-20420

CUSHION

25

04434-52112

CLIP

26

07095-20314

CUSHION

27

01010-80812

BOLT

28

01643-30823

WASHER

29

07095-00630

CUSHION

30

08034-20823

BAND

31

01010-81020

BOLT

32

01643-31032

WASHER

33

07095-20318

CUSHION

34

07095-01033

CUSHION

35

04434-52512

CLIP
