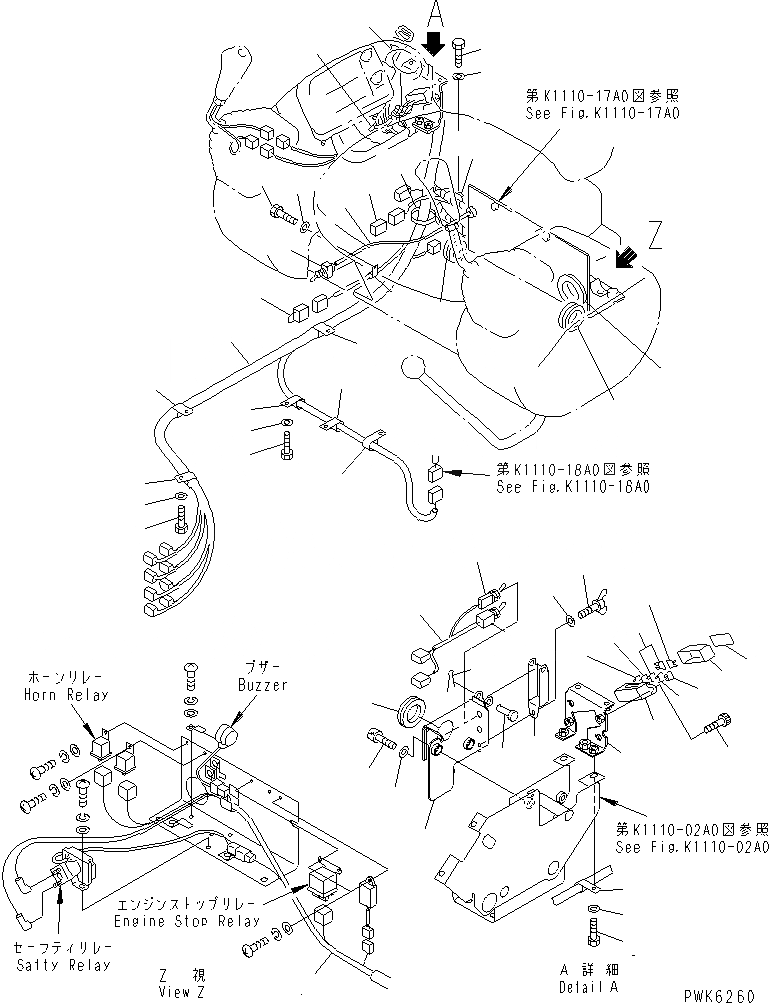

Запчасти Komatsu PC58SF-1 ОСНОВН. КОНСТРУКЦИЯ (ЭЛЕКТРОПРОВОДКА)(№9-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

20U-06-31115

WIRE

|1

20U-06-31114

WIRING HARNESS

|1

20U-06-31113

WIRING HARNESS

|1

20U-06-31112

WIRING HARNESS

|1

08020-00000

DIODE

2

20T-06-71560

FUSE BOX

3

20U-06-31340

PLATE,FUSE

4

201-06-61240

FUSE¤ 30A

5

205-06-73180

FUSE¤ 15A

6

22W-06-13160

FUSE¤ 20A

7

283-06-16190

FUSE¤ 10A

8

21W-06-21152

BRACKET

9

01010-80820

BOLT

10

01643-30823

WASHER

11

20T-54-71550

BOLT

12

04434-53411

CLIP

13

04434-53411

CLIP

14

04434-53411

CLIP

15

01010-81016

BOLT

16

01643-31032

WASHER

17

08037-05016

GROMMET

18

08037-03614

GROMMET

19

20S-06-31130

STARTING SWITCH

|19

20Y-06-24681

SWITCH,(BURGLAR PREVENT TYPE)

|19

20Y-06-24680

SWITCH,(BURGLAR PREVENT TYPE)

20

20U-06-21331

WIRE

21

20U-06-22230

WIRING HARNESS

22

20U-06-21260

SWITCH,CANCEL

23

08034-00414

BAND

24

20U-54-33282

BRACKET

25

01252-71025

BOLT

26

01643-31032

WASHER

27

09415-03614

CAP

28

20U-06-33591

WIRING HARNESS

29

20Y-06-23350

SWITCH,BOOM REDUNDANCY OPERATION

30

20Y-06-24150

SWITCH,BOOM REDUNDANCY

31

20U-54-33241

COVER

32

04205-11038

PIN

33

04050-13020

PIN,COTTER

34

01434-00616

BOLT¤ WING

35

01643-30623

WASHER

36

04434-51010

CLIP

37

01010-81020

BOLT

38

01643-31032

WASHER

39

08034-00536

BAND

40

20U-06-31360

WIRING HARNESS

41

04434-51010

CLIP

42

01010-81020

BOLT

43

01643-51032

WASHER
