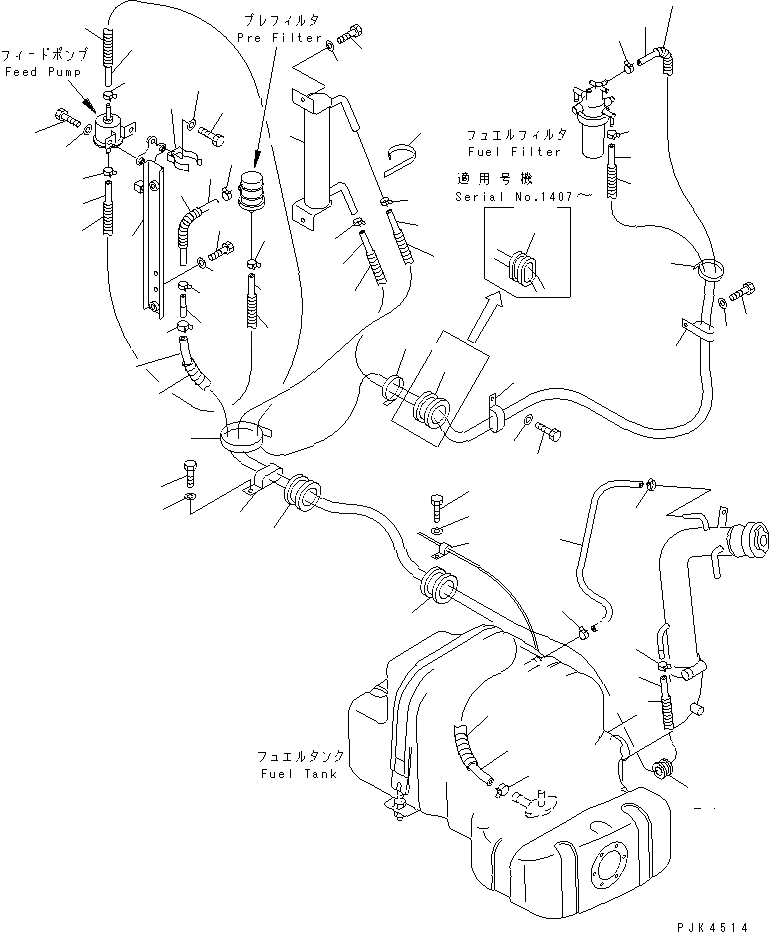

Запчасти Komatsu PC58SF-1 ТОПЛИВН. БАК. (ТОПЛИВН. ЛИНИЯ) ТОПЛИВН. БАК. AND КОМПОНЕНТЫ

|1

20U-04-21470

HOSE ASS'Y

1

07288-00702

HOSE

2

08017-21301

CONDUIT

3

11Y-09-11120

CLIP

|3

07285-00110

CLIP

4

391-62-19240

CLIP

5

01010-81020

BOLT

6

01643-31032

WASHER

7

20U-04-21352

BRACKET

8

20U-04-21341

TUBE

9

01010-81020

BOLT

10

01643-31032

WASHER

|11

20U-04-21490

HOSE ASS'Y

11

07288-00725

HOSE

12

08017-21323

CONDUIT

13

11Y-09-11120

CLIP

|13

07285-00110

CLIP

|14

20U-04-21510

HOSE ASS'Y

14

07288-00719

HOSE

15

08017-21317

CONDUIT

16

07285-00110

CLIP

|17

20U-04-21520

HOSE ASS'Y

17

07288-00722

HOSE

18

08017-21317

CONDUIT

19

07285-00110

CLIP

20

07270-21055

TUBE

21

07285-00130

CLIP

22

08034-00823

BAND

23

201-06-61370

GROMMET

|23

201-06-61370

GROMMET

23A

20U-06-28120

GROMMET

24

425-43-11180

GROMMET

25

20U-04-21370

JOINT

|26

20U-04-21460

HOSE ASS'Y

26

07288-01019

HOSE

27

08017-21917

CONDUIT

28

11Y-09-11140

CLIP

|28

07285-00150

CLIP

|29

20U-04-21480

HOSE ASS'Y

29

07288-00704

HOSE

30

08017-21303

CONDUIT

|30

08017-21302

CONDUIT

31

11Y-09-11120

CLIP

|31

07285-00110

CLIP

32

10S-04-21220

CLAMP

33

01010-80816

BOLT

34

01643-30823

WASHER

35

01010-80616

BOLT

36

01643-30623

WASHER

37

04434-50610

CLIP

38

01010-81020

BOLT

39

01643-31032

WASHER

40

04435-52212

CLIP

41

01010-81020

BOLT

42

01643-31032

WASHER

43

08034-00823

BAND
