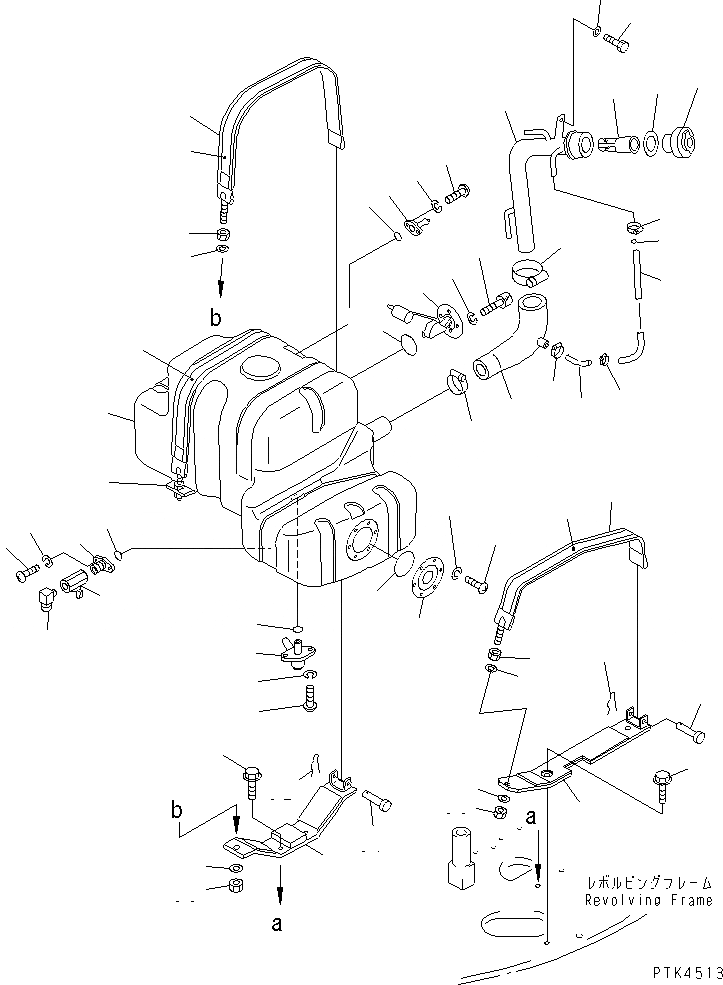

Запчасти Komatsu PC58SF-1 ТОПЛИВН. БАК. (БАК) ТОПЛИВН. БАК. AND КОМПОНЕНТЫ

|1

20U-04-21104

TANK ASS'Y

1

20U-04-21112

TANK

2

20U-04-21530

FLANGE ASS'Y

|2

07040-10807

PLUG

|2

07002-10823

O-RING

3

01220-40616

SCREW

4

01602-20619

WASHER

5

07000-12015

O-RING

6

20U-04-21150

FLANGE

7

01220-40620

SCREW

8

01602-20619

WASHER,SPRING

9

07000-12015

O-RING

10

20U-04-21431

FLANGE

11

07700-50455

VALVE

12

01220-40620

SCREW

13

01602-20619

WASHER,SPRING

14

07000-12018

O-RING

15

20U-04-31110

JOINT

16

20U-04-21410

PLATE

17

07000-E2080

O-RING

18

01220-40612

SCREW

19

01602-20619

WASHER,SPRING

20

7861-92-5820

SENSOR,FUEL

21

01252-40612

BOLT

22

01602-20619

WASHER,SPRING

23

07000-03048

O-RING

24

20U-04-21181

BRACKET

25

21W-04-31220

BRACKET

26

01435-01225

BOLT

27

20U-04-21221

BAND

28

20U-04-21210

CUSHION

29

20U-04-21280

BAND

30

20U-04-21290

CUSHION

31

20U-04-21240

PIN

32

04052-11038

PIN,SPRING

33

01580-11210

NUT

34

01643-31232

WASHER

35

20U-04-31120

FILLER

36

20U-04-21361

CAP

|36

20U-04-21360

CAP

37

01010-81020

BOLT

38

01643-31032

WASHER

39

21W-04-31191

STRAINER

40

21W-04-31230

PLATE

41

21W-04-31260

HOSE

42

20U-04-31130

CONNECTOR

43

07285-00180

CLIP

|43

07281-00197

CLAMP

44

07289-00055

CLAMP

45

07289-00080

CLAMP

46

20U-04-21320

TUBE

47

07285-00155

CLIP

48

201-04-21160

BALL,FLOAT
