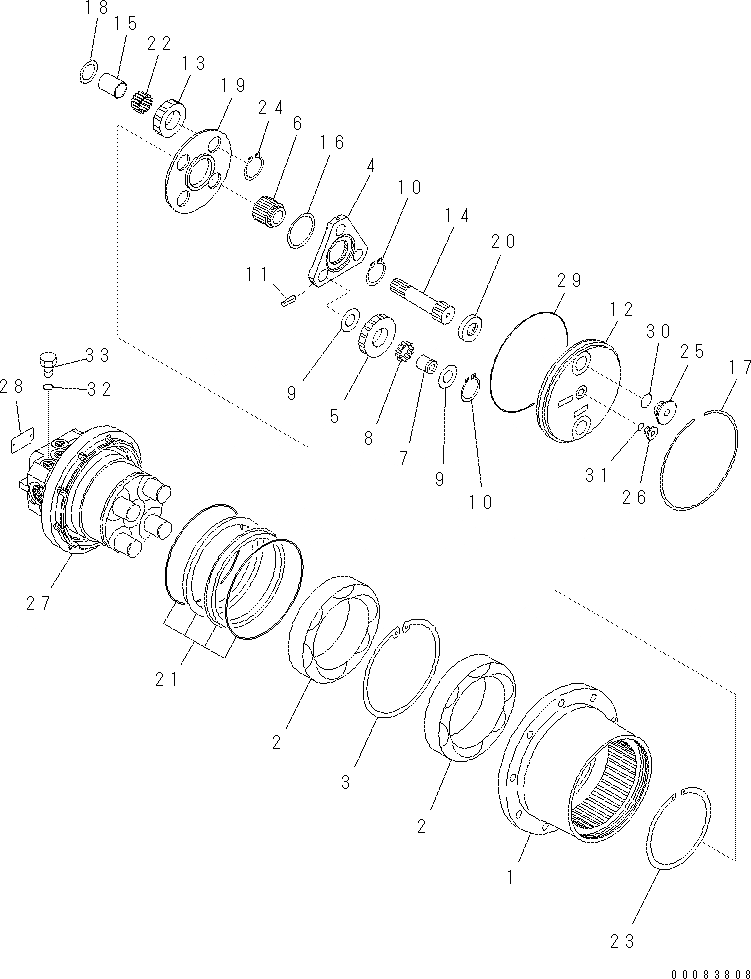

Запчасти Komatsu PC57-7 МОТОР ХОДА (ПОНИЖАЮЩ. ПЕРЕДАЧА) (/) Y [ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]

|$1

22H-60-13112

MOTOR ASS'Y

|$2

FUGHB-4-8991

BODY ASS'Y

1

Ўо

BODY

2

Ўо

BEARING

3

Ўо

RING, SNAP

|$6

FUGHC4B28235

CARRIER SUB ASS'Y

4

Ўо

CARRIER, 2

5

Ўо

GEAR, B2

6

Ўо

GEAR, S1

7

Ўо

PIN, B2

8

Ўо

NEEDLE

9

Ўо

WASHER, THRUST

10

FUFZD-8503-125

RING, SNAP

11

Ўо

PIN, SPRING

12

FUFZD-8322-102

COVER

13

FUFZD-8090-106

GEAR, B1

14

FUFZD-8090-109

GEAR, S2

15

FUFZD-8090-110

RING

16

FUFZD-8090-112

COLLAR, THRUST

17

FUFZD-8322-113

RING, SNAP

18

FUFZD-8090-114

PLATE, THRUST

19

FUFZD-8090-115

PLATE, THRUST

20

FUFZD-8322-116

RING, SLIDE

21

FUFZD-8322-217

FLOATING SEAL A.

22

FUFZD-8090-120

NEEDLE

23

FUFZD-8322-123

RING, SNAP

24

FUFZD-8503-125

RING, SNAP

25

FUFZD-8144-134

PLUG

26

FUGPF-1/8

PLUG

27

Ўо

MOTOR

28

Ўо

NAME PLATE

-

FUGHS50018325

SEAL KIT

29

FUROA-264

O-RING

30

FURO-P14-90

O-RING

31

FURO-P8-90

O-RING

32

FURO-P11-90

O-RING

33

FUGPF-1/4

PLUG
