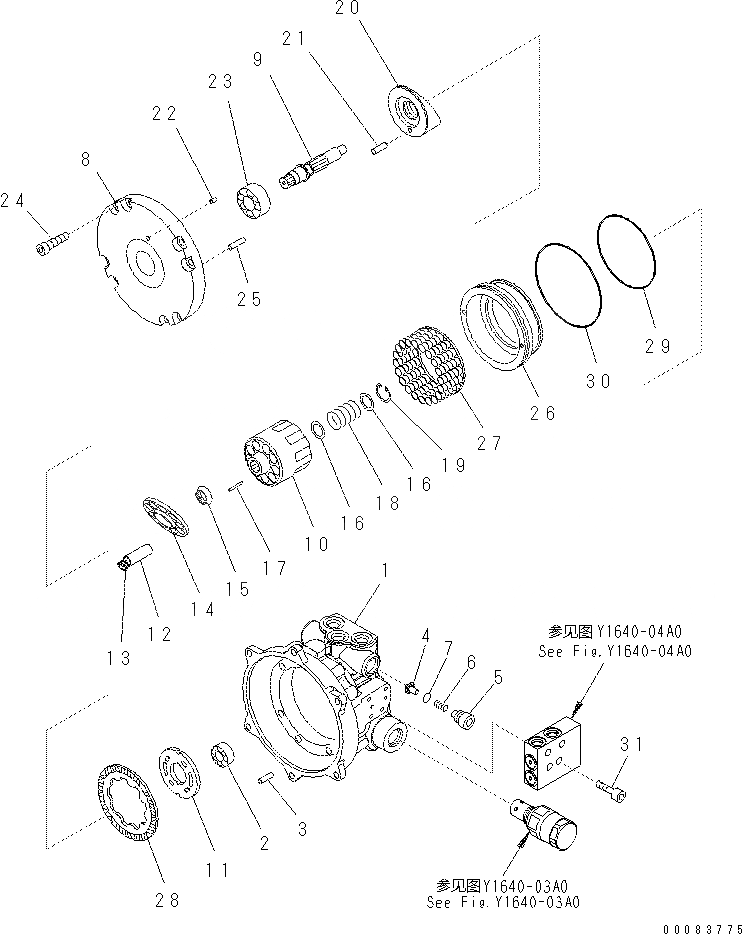

Запчасти Komatsu PC57-7 МОТОР ПОВОРОТА (ГИДРАВЛ МОТОР) (/) Y [ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]

|$1

22H-60-13201

SWING MACHINERY A.

|$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1640-01A0 TO Y1640-04A0.

|$3

FUPM1B20BFS289

MOTOR ASS'Y

|$4

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1640-02A0 TO Y1640-04A0.

|$5

FUMRD-2030FP

BODY KIT

1

Ўо

BODY

2

Ўо

BEARING

3

Ўо

PIN, SPRING

4

Ўо

CHECK VALVE

5

Ўо

PLUG

6

Ўо

SPRING

7

Ўо

O-RING(KIT)

8

Ўо

PLATE, S

9

Ўо

SHAFT

|$15

FUMHCB-1-8582

CYLINDER BARREL KIT

10

Ўо

BARREL, CYLINDER

11

Ўо

PLATE, VALVE

12

Ўо

PISTON

13

Ўо

SHOE

14

Ўо

HOLDER, SHOE

15

Ўо

HOLDER, BARREL

16

Ўо

RETAINER

17

Ўо

PIN

18

Ўо

SPRING, C

19

Ўо

RING, SNAP

|$26

FUMHSW-2180-20

SWASH PLATE KIT

20

Ўо

PLATE, SWASH

21

Ўо

PIN

22

FUFZS9480106

FILTER

23

FU6204Z

BEARING

24

FUTH-10X25

SCREW

25

FUFRP-1015-19

PIN

26

Ўо

PISTON, BRAKE

27

Ўо

SPRING ASS'Y

28

Ўо

DISK, PLATE

29

FURO-G110-90

O-RING(KIT)

30

FURO-G125-90

O-RING(KIT)

31

FUTH6X15

BOLT

|$39

SERVICE KIT

KIT

FUGCS-1-8477

SEAL KIT
