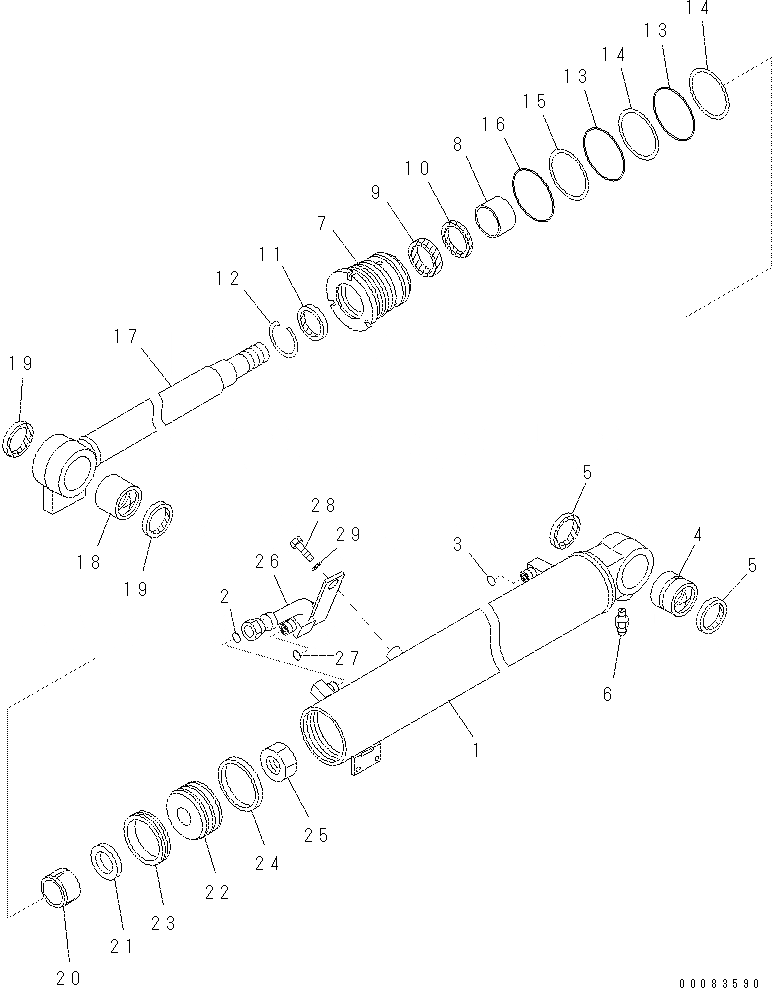

Запчасти Komatsu PC57-7 ЦИЛИНДР СТРЕЛЫ Y [ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ]

G1

707-G0-X0930

CYLINDER GROUP,BOOM

|$2

====================

|$3

707-00-0J0301

CYLINDER ASS'Y

1

721-11-90870

CYLINDER

2

02896-11012

O-RING(KIT)

3

02896-11015

O-RING(KIT)

4

20T-870-1290

BUSHING

5

07145-00050

SEAL,DUST(KIT)

6

07020-00000

FITTING,GREASE

7

707-29-90080

HEAD,CYLINDER

8

707-52-90300

BUSHING

9

707-51-55030

PACKING,ROD(KIT)

10

707-51-55640

RING,BUFFER(KIT)

11

707-56-55740

SEAL,DUST(KIT)

12

07179-12069

RING,SNAP

13

07000-12085

O-RING(KIT)

14

07146-02086

RING,BACK-UP(KIT)

15

707-35-52690

RING,BACK-UP(KIT)

16

07000-12090

O-RING(KIT)

17

721-58-55650

ROD,PISTON

|$21

721-58-55651

ROD,PISTON

18

707-76-50740

BUSHING

19

07145-00050

SEAL,DUST(KIT)

20

707-71-70930

PLUNGER

21

707-40-90410

RETAINER

22

707-36-90580

PISTON

23

707-44-90150

RING,PISTON(KIT)

24

707-39-90100

RING,WEAR(KIT)

25

707-67-30920

NUT

26

707-86-48040

TUBE

27

02896-11012

O-RING(KIT)

28

01010-81020

BOLT

29

01643-31032

WASHER

|$34

====================

|$35

SERVICE KIT

K

707-99-26570

SERVICE KIT,BOOM CYLINDER
