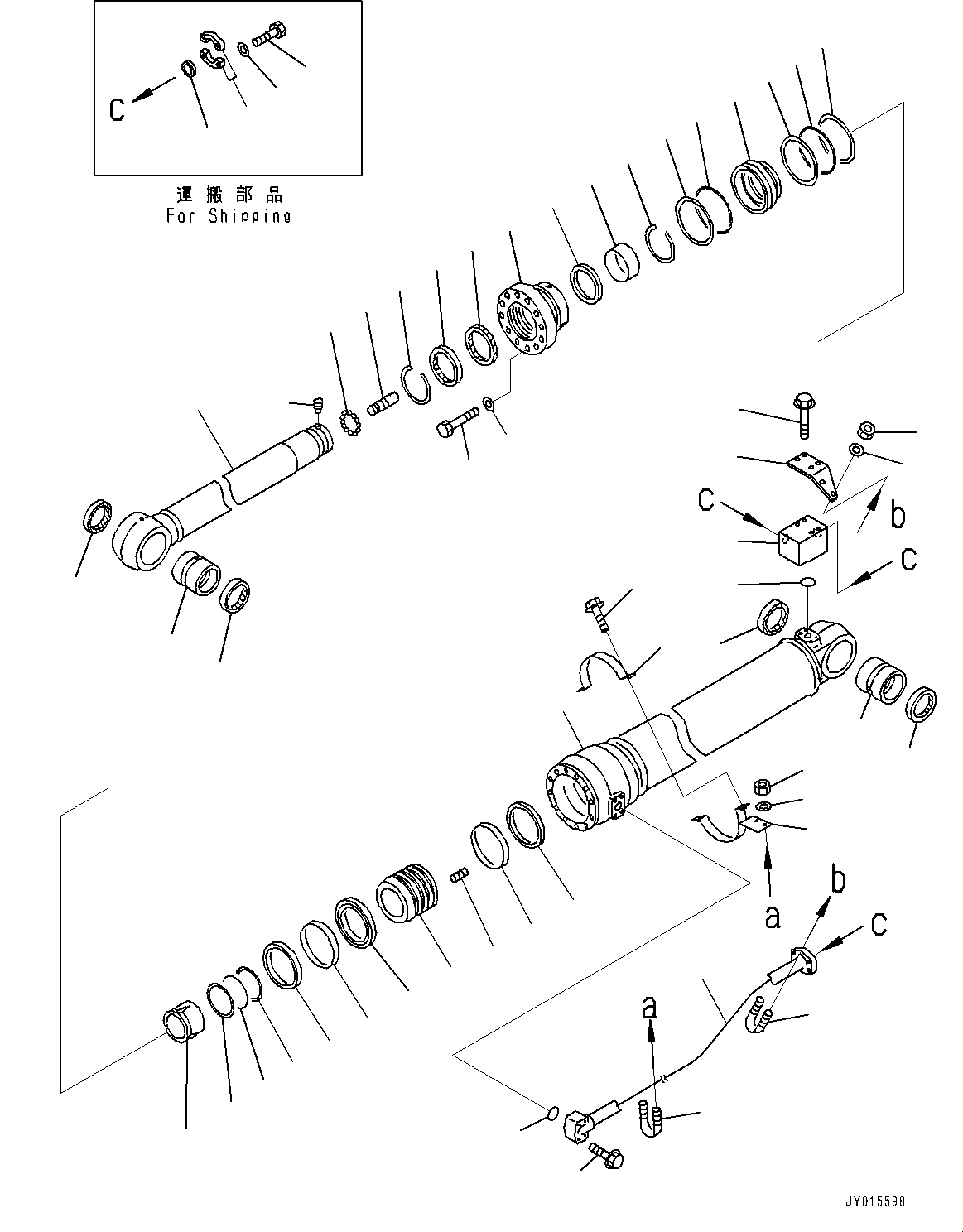

Запчасти Komatsu PC550LC-8 ЦИЛИНДР РУКОЯТИ(№78-) ЦИЛИНДР РУКОЯТИ

|$0

707-01-0F810

Cylinder Assembly

1

707-13-18770

Cylinder

2

707-58-12530

Rod

3

707-76-11130

Bushing

4

07145-00110

Seal, Dust, (Kit : K03)

5

707-76-11130

Bushing

6

07145-00110

Seal, Dust, (Kit : K03)

7

707-71-31690

Collar

8

707-35-91840

Ring, Back-up, (Kit : K03)

9

07000-15175

O-ring, (Kit : K03)

10

707-71-61330

Plunger

11

707-71-70340

Plunger

12

04260-00952

Ball

13

707-71-91230

Cap

14

707-27-18930

Head, Cylinder

15

07179-13136

Ring, Snap

16

195-63-93170

Seal, Dust, (Kit : K03)

17

707-52-90981

Bushing

18

707-51-12030

Packing, Rod, (Kit : K03)

19

707-51-12640

Ring, Buffer, (Kit : K03)

20

07000-15175

O-ring, (Kit : K03)

21

707-35-91840

Ring, Back-up, (Kit : K03)

22

01011-82400

Bolt

23

707-88-75410

Washer

24

07179-13126

Ring, Snap

25

707-36-18520

Piston

26

707-44-18280

Ring, Piston, (Kit : K03)

27

707-39-18510

Ring, Wear, (Kit : K03)

28

707-44-18920

Ring

29

07000-15110

O-ring, (Kit : K03)

30

07001-05110

Ring, Back-up, (Kit : K03)

31

01310-01225

Screw

32

707-86-12610

Tube

33

707-86-11610

Block

34

01435-01055

Bolt

35

01436-01005

Bolt

36

07000-13035

O-ring, (Kit : K03)

37

707-88-25450

Bracket

38

707-88-21880

Band

39

01435-01235

Bolt

40

07283-33442

Clip, Pipe

41

01597-01009

Nut

42

01643-31032

Washer

43

707-88-02960

Plate

44

707-88-33040

Cap

45

07371-31049

Flange, Split

46

07372-21035

Bolt

47

01643-51032

Washer
