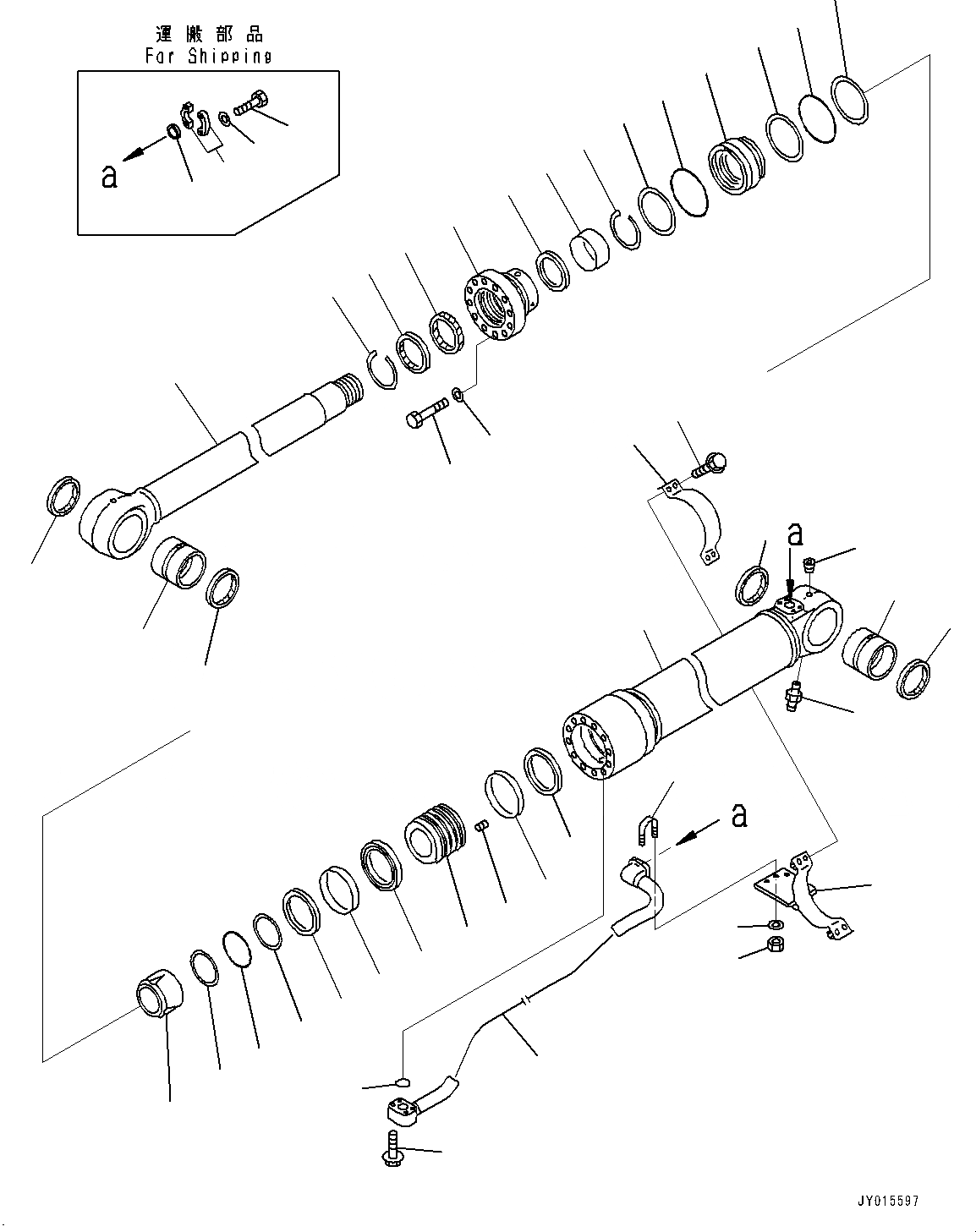

Запчасти Komatsu PC550LC-8 ЦИЛИНДР СТРЕЛЫ, ЛЕВ. (№78-) ЦИЛИНДР СТРЕЛЫ

|$0

707-01-0F670

Cylinder Assembly

1

707-13-16860

Cylinder

2

707-58-11490

Rod

3

707-76-10290

Bushing

4

07145-00100

Seal, Dust, (Kit : K02)

5

07020-00000

Fitting, Grease

6

07043-00108

Plug, Taper

7

707-76-11220

Bushing

8

07145-00110

Seal, Dust, (Kit : K02)

9

707-71-31670

Collar

10

707-35-91640

Ring, Back-up, (Kit : K02)

11

07000-15150

O-ring, (Kit : K02)

12

707-71-61140

Plunger

13

707-27-16580

Head

14

198-63-94170

Seal, Dust, (Kit : K02)

15

07179-13126

Ring, Snap

16

707-52-90851

Bushing

17

707-51-11030

Packing, Rod, (Kit : K02)

18

707-51-11640

Ring, Buffer, (Kit : K02)

19

707-35-91640

Ring, Back-up, (Kit : K02)

20

07000-15150

O-ring, (Kit : K02)

21

01010-82085

Bolt

22

707-88-75310

Washer

23

707-75-11040

Ring, Snap

24

707-36-16580

Piston

25

707-44-16180

Ring, Piston, (Kit : K02)

26

707-39-16120

Ring, Wear, (Kit : K02)

27

707-44-16910

Ring

28

07000-15100

O-ring, (Kit : K02)

29

07001-05100

Ring, Back-up, (Kit : K02)

30

01310-01216

Screw

31

707-86-12550

Tube

32

01435-01055

Bolt

33

07000-13035

O-ring, (Kit : K02)

34

707-88-25370

Bracket

35

707-88-21660

Band

36

01435-01235

Bolt

37

07283-33442

Clip, Pipe

38

01643-31032

Washer

39

01597-01009

Nut

40

707-88-33040

Cap

41

07371-31049

Flange, Split

42

07372-21035

Bolt

43

01643-51032

Washer
