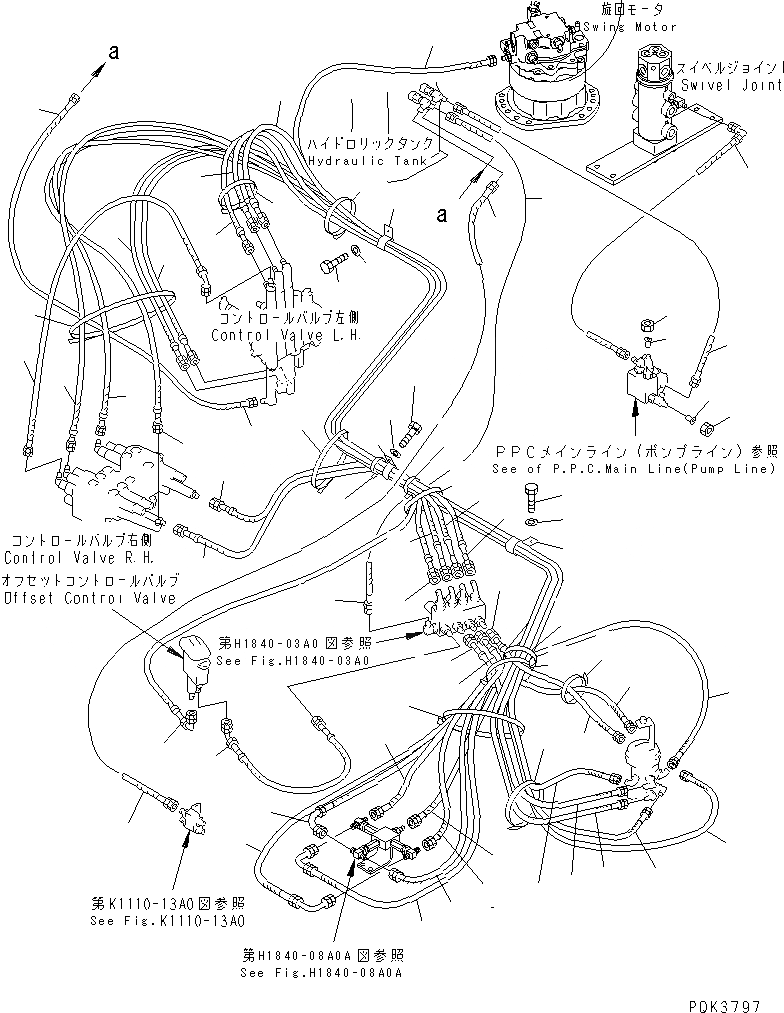

Запчасти Komatsu PC50UUM-2 P.P.C. ОСНОВН. ЛИНИЯ (ОСНОВН. ЛИНИЯ PPC) ГИДРАВЛИКА

1

20U-62-23152

HOSE,ORANGE

2

20U-62-23611

HOSE,BLUE

3

21W-62-22790

HOSE,WHITE

4

20U-62-23122

HOSE,RED

5

20U-62-23122

HOSE,GREEN

6

20U-62-23122

HOSE,BROWN

7

20U-62-23670

HOSE¤ 1200MM,YELLOW

8

20U-62-23670

HOSE¤ 1200MM,BLACK

9

20U-62-23640

HOSE,WHITE-RED

10

08034-00536

BAND

11

20U-62-23690

HOSE¤ 1050MM,WHITE-BLACK

12

20U-62-23620

HOSE

13

20U-62-22411

HOSE

14

20U-62-23710

HOSE

15

20U-62-23740

HOSE

16

201-62-72190

HOSE¤ 1350MM

18

21W-62-22830

HOSE,GREEN

19

21W-62-22830

HOSE,WHITE-BLACK

20

20U-62-23590

HOSE,BLACK

21

20U-62-23590

HOSE,WHITE

22

20U-62-23780

HOSE¤ 330MM,YELLOW

23

20P-99-89120

HOSE,BROWN

24

20U-973-2350

HOSE,GREEN

25

08034-00536

BAND

26

20U-62-23690

HOSE¤ 1050MM

27

21K-03-11190

CLIP

28

01010-81020

BOLT

29

01643-31032

WASHER

30

08034-00823

BAND

31

23S-62-25850

CLIP

32

01010-81020

BOLT

33

01643-31032

WASHER

33A

208-62-18350

COVER,(NOT SHOWN)

34

209-62-77940

HOSE¤ 600MM

35

07222-00210

PLUG

36

07221-20210

NUT
