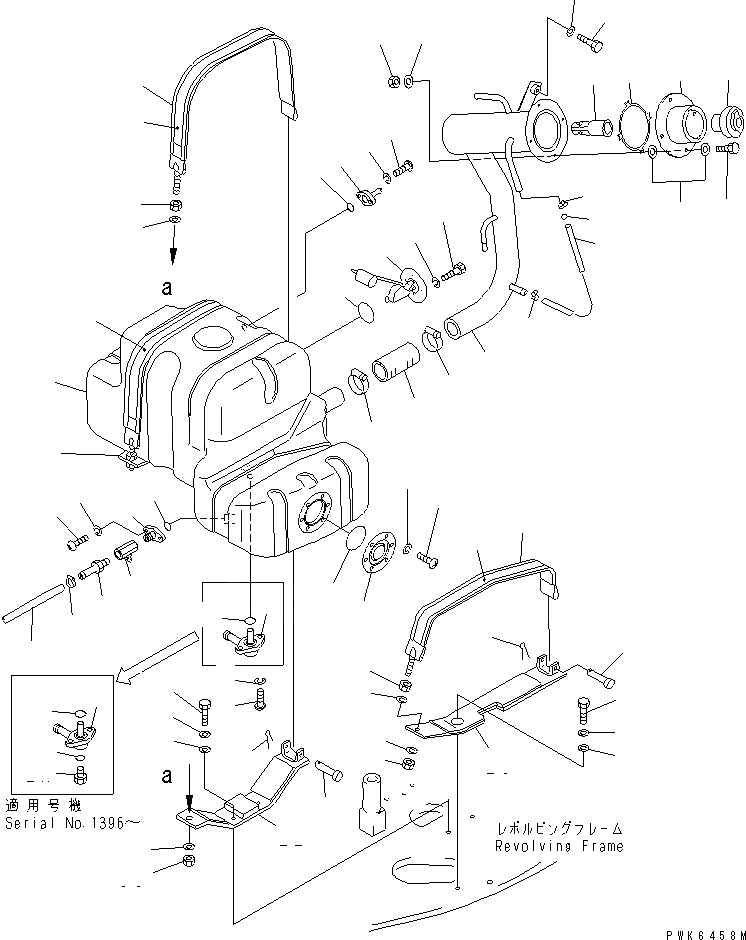

Запчасти Komatsu PC50UUM-2 ТОПЛИВН. БАК. (БАК) ТОПЛИВН. БАК. AND КОМПОНЕНТЫ

1

20U-04-21112

TANK

2

20U-04-21530

FLANGE ASS'Y

|2

21Y-04-11381

FLANGE ASS'Y

2A

07040-10807

PLUG

2B

07002-10823

O-RING

3

01220-40616

SCREW

4

01602-20619

WASHER,SPRING

5

07000-02015

O-RING

6

20U-04-21150

FLANGE

7

01220-40620

SCREW

8

01602-20619

WASHER,SPRING

9

07000-02015

O-RING

|10

20U-04-00011

VALVE ASS'Y

|10

20U-04-00010

VALVE ASS'Y

10

FLANGE

|10

FLANGE

11

VALVE

|11

VALVE

12

NIPPLE

|12

NIPPLE

13

01220-40620

SCREW

14

01602-20619

WASHER,SPRING

15

07000-02018

O-RING

|15

07000-02015

O-RING

16

07270-01245

TUBE

17

07280-01620

CLAMP

17A

20U-04-21410

PLATE

17B

07000-E2080

O-RING

17C

01220-40612

SCREW

17D

01602-20619

WASHER

18

7861-92-5820

SENSOR,FUEL

19

01252-40612

BOLT

20

01602-20619

WASHER,SPRING

21

07000-03048

O-RING

22

20U-04-21181

BRACKET

23

21W-04-31220

BRACKET

24

01010-81230

BOLT

25

01643-31232

WASHER

26

01641-21223

WASHER

27

20U-04-21221

BAND

28

20U-04-21210

CUSHION

29

20U-04-21280

BAND

30

20U-04-21290

CUSHION

31

20U-04-21240

PIN

32

04052-11038

PIN,SNAP

33

01580-11210

NUT

34

01643-31232

WASHER

35

20U-04-21124

TUBE

36

20U-04-21440

COVER

37

07056-18416

STRAINER

38

20U-04-21450

GASKET

39

01010-80820

BOLT

40

01643-50823

WASHER

41

01580-10806

NUT

42

20U-04-21360

CAP

43

01010-81020

BOLT

44

01643-31032

WASHER

45

20U-04-21131

HOSE

46

07281-00709

CLAMP

47

20U-04-21320

TUBE

48

07285-00155

CLIP

49

201-04-21160

BALL,FLOAT
