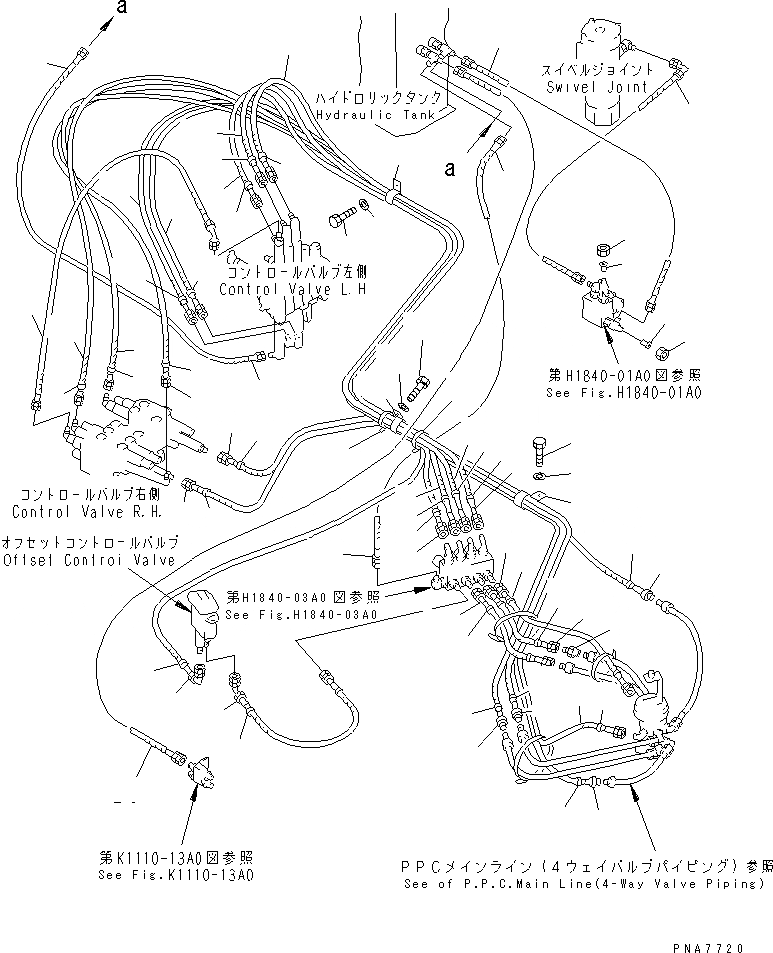

Запчасти Komatsu PC50UU-2 P.P.C. ОСНОВН. ЛИНИЯ (ОСНОВН. ЛИНИЯ PPC) (MULTIPLE PATTERN CONTRL)(№8-99) ГИДРАВЛИКА

1

21X-62-22230

HOSE

2

203-62-57910

MARK, 1

3

20U-62-23790

HOSE

4

203-62-57920

MARK, 2

5

20U-62-23122

HOSE

6

203-62-57970

MARK, 7

7

20U-62-23410

HOSE

8

203-62-57980

MARK, 8

9

20U-62-23611

HOSE

10

203-62-57940

MARK, 4

11

20U-62-23141

HOSE

12

203-62-57930

MARK, 3

13

20U-62-23161

HOSE

14

203-62-57960

MARK, 6

15

21W-62-22850

HOSE

16

203-62-57950

MARK, 5

17

20U-62-23670

HOSE, 1200MM

18

203-62-57990

MARK, 10

19

20U-62-23640

HOSE

20

203-62-58110

MARK, 11

21

20U-62-23620

HOSE

22

20U-62-22411

HOSE

23

20U-62-23710

HOSE

24

20U-62-23740

HOSE

25

20U-62-23670

HOSE, 1200MM

26

20U-62-23730

HOSE

27

203-62-57920

MARK, 2

28

20U-62-22270

HOSE

29

203-62-57910

MARK, 1

30

20U-62-23780

HOSE, 330MM

31

20U-62-22180

NIPPLE

32

203-62-57970

MARK, 7

33

21W-62-22830

HOSE

34

203-62-57990

MARK, 10

35

04434-53211

CLIP

36

01010-51020

BOLT

37

01643-31032

WASHER

38

08034-00823

BAND

39

155-61-15350

CLIP

40

01010-51020

BOLT

41

01643-31032

WASHER

42

20U-62-22421

HOSE

43

07222-00210

PLUG

44

07221-20210

NUT
