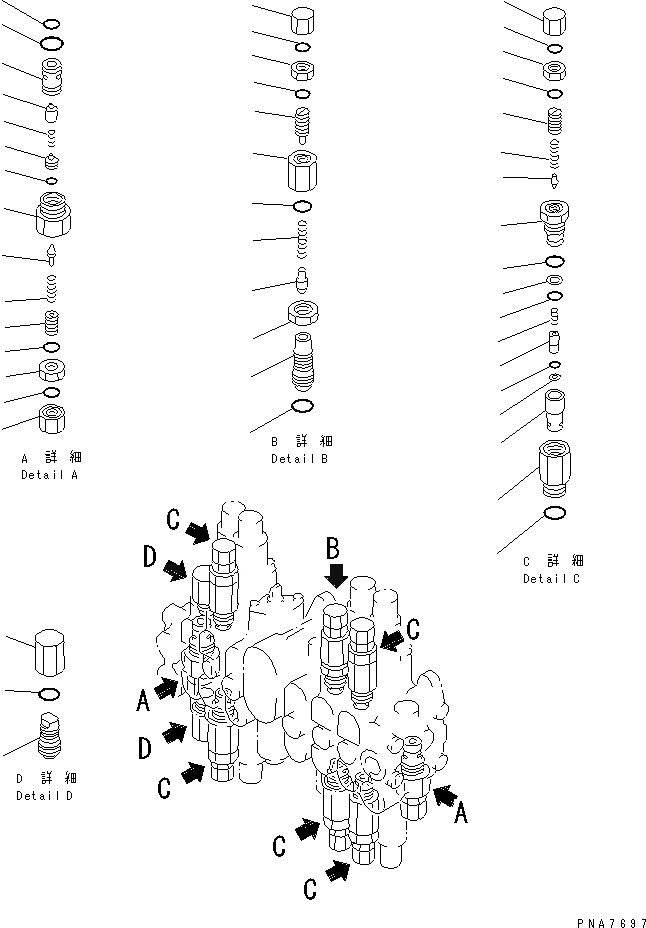

Запчасти Komatsu PC50UU-2 ОСНОВН. КЛАПАН (-КЛАПАН) (ДЛЯ КЛАПАН¤ ПРАВ.) (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$0

20U-60-22223

VALVE ASS'Y

|$1

20U-60-22222

VALVE ASS'Y

|$2

20U-60-22221

VALVE ASS'Y

|$4

NAD33316087822

VALVE ASS'Y,MAIN RELIEF

1

SLEEVE

2

POPPET

3

NAE574130025

SPRING

4

NAE114130026

SEAT

5

NAC01101010010

O-RING

6

RETAINER

7

NAD51090205004

POPPET

8

NAE574120838

SPRING

9

NAE12416087901

SCREW

10

NAE51414733901

NUT

11

NAE14414733801

NUT

12

NAE54414762001

O-RING

13

NAC03100001510

O-RING

14

NAC01100022010

O-RING

|$19

NAD33415778005

VALVE ASS'Y,SAFETY

|$20

NAD33415778005

VALVE ASS'Y,SAFETY

15

RETAINER

16

SLEEVE

17

O-RING

18

POPPET

19

SPRING

20

SCREW

21

NUT

22

NUT

23

O-RING

24

NAE54408521204

O-RING

25

NUT

|$32

NAD33416379404

VALVE ASS'Y,SAFETY AND SUCTION

|$33

NAD33416379404

VALVE ASS'Y,SAFETY AND SUCTION

26

RETAINER

27

SLEEVE

28

POPPET

29

O-RING

30

RING,BACK-UP

31

SPRING

32

SEAT

33

O-RING

34

O-RING

35

RING,BACK-UP

36

POPPET

37

SPRING

38

SCREW

39

NUT

40

NUT

41

O-RING

42

NAE54408521204

O-RING

|$51

NAD33417057801

PLUG ASS'Y

43

PLUG

44

NUT

45

NAE54408521204

O-RING
