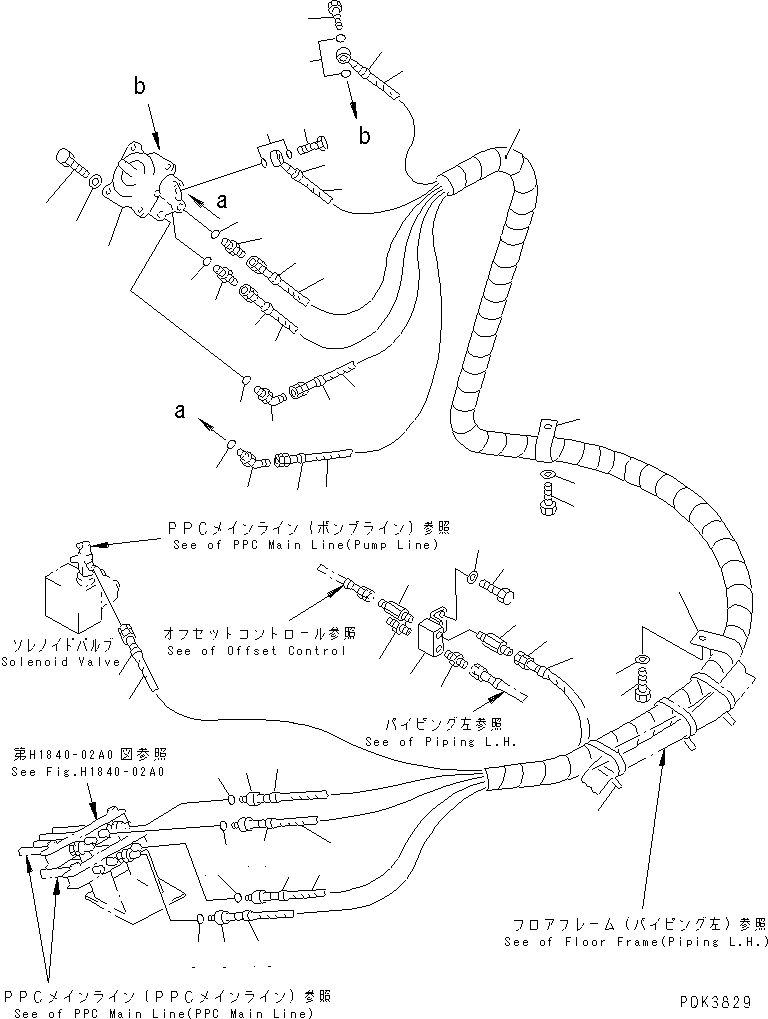

Запчасти Komatsu PC50UU-2 ОСНОВН. КОНСТРУКЦИЯ (ТРУБЫ ПРАВ.) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

702-16-01181

PILOT VALVE

1

702-16-01180

PILOT VALVE,(SEE FIG.Y1670-11A1)

1

702-16-01091

PILOT VALVE,(SEE FIG.Y1670-11A0)

2

01010-80820

BOLT

3

01643-30823

WASHER

4

20U-62-23910

HOSE, 2010MM,BLACK

5

20U-62-22190

O-RING

6

20U-62-23920

HOSE, 1975MM,YELLOW

7

20U-62-22190

O-RING

8

20U-62-23930

HOSE, 2030MM,RED OR BLUE

9

20U-62-22190

O-RING

10

20U-62-23940

HOSE, 2130MM,RED-GREEN

11

20U-62-23950

HOSE, 1880MM,BLUE-WHITE

12

203-62-57910

MARK, 1

12

20T-62-71710

MARK, 1

13

203-62-57920

MARK, 2

13

20T-62-71720

MARK, 2

14

203-62-57930

MARK, 3

14

20T-62-71730

MARK, 3

15

203-62-57940

MARK, 4

15

20T-62-71740

MARK, 4

16

203-62-58160

MARK, P1

17

203-62-58210

MARK, T1

18

203-62-32450

COVER

19

203-62-57730

BOLT,EYE

20

07000-02018

O-RING

21

702-16-53240

PLUG

22

07230-20210

UNION

23

07236-10210

ELBOW

24

07002-01423

O-RING

25

281-01-13180

CLIP

26

01010-81020

BOLT

27

01643-31032

WASHER

28

08034-00536

BAND

29

20U-62-23560

PLATE

30

01010-81020

BOLT

31

01643-31032

WASHER

32

07238-10210

CONNECTOR

32

07238-10210

CONNECTOR

33

418-878-1480

NIPPLE
