Запчасти Komatsu PC50UU-2 P.P.C. ОСНОВН. ЛИНИЯ (ОСНОВН. ЛИНИЯ PPC) (MULTIPLE PATTERN CONTRL)(№99-) ГИДРАВЛИКА

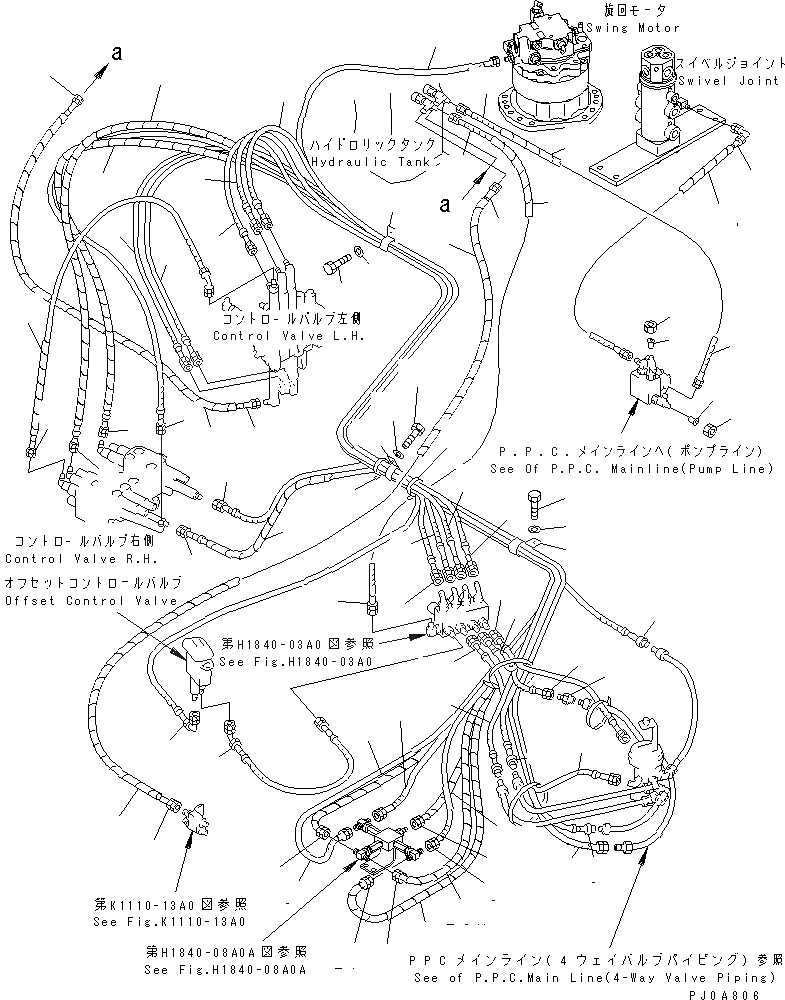

Схема запчастей Komatsu PC50UU-2 - P.P.C. ОСНОВН. ЛИНИЯ (ОСНОВН. ЛИНИЯ PPC) (MULTIPLE PATTERN CONTRL)(№99-) ГИДРАВЛИКА
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
10A
10B
10C
11
11
11A
12
12A
13
13
13A
14
14
14A
15
15
15A
15A
16
17
17
18
18
19
19
20
21
21
22
22
23
23A
23A
23A
24
24
24A
25
26
27
28
28
29
29
30
30
31
31
32
32A
33
33
34
34

Артикул

Название

Примечание

Количество

1

20U-62-23670

HOSE¤ 1200MM,BLACK

2

20U-62-23670

HOSE¤ 1200MM,YELLOW

3

20U-62-23141

HOSE,RED

4

20U-62-23611

HOSE,BLUE

5

20U-62-23122

HOSE,BROWN

6

21W-62-22790

HOSE,WHITE

7

20U-62-23122

HOSE,GREEN

8

20U-62-23690

HOSE¤ 1050MM,WHITE-BLACK

9

20U-62-23640

HOSE,WHITE-RED

10

20U-62-23410

HOSE,ORANGE

10A

08210-01802

SPIRAL TUBE

10B

08210-01805

SPIRAL TUBE

10C

08210-01806

SPIRAL TUBE

11

20U-62-23620

HOSE

11A

08210-01809

SPIRAL TUBE

12

20U-62-22411

HOSE

12A

08210-01802

SPIRAL TUBE

13

20U-62-23710

HOSE

13A

08210-01806

SPIRAL TUBE

14

20U-62-23740

HOSE

14A

08210-01813

SPIRAL TUBE

15

201-62-72190

HOSE¤ 1350MM

15A

08210-01805

SPIRAL TUBE

16

21W-62-22830

HOSE,WHITE-BLACK

17

21W-62-22830

HOSE,GREEN

18

20U-62-23730

HOSE,BLACK

19

20U-62-23730

HOSE,WHITE

20

20U-62-23780

HOSE¤ 330MM,YELLOW

21

20U-62-23880

HOSE,BROWN

22

21W-62-22830

HOSE,GREEN

23

20U-62-22180

NIPPLE

23A

08210-01802

SPIRAL TUBE

24

20U-62-23690

HOSE¤ 1050MM

24A

08210-01803

SPIRAL TUBE

25

21K-03-11190

CLIP

26

01010-81020

BOLT

27

01643-31032

WASHER

28

08034-00823

BAND

29

23S-62-25850

CLIP

30

01010-81020

BOLT

31

01643-31032

WASHER

32

209-62-77940

HOSE¤ 600MM

32A

08210-01802

SPIRAL TUBE

33

07222-00210

PLUG,(FOR ATTACHMENT LINE LESS)

34

07221-20210

NUT,(FOR ATTACHMENT LINE LESS)

Выбрано товаров: 45
