P.P.C. ОСНОВН. ЛИНИЯ (ОСНОВН. ЛИНИЯ PPC)(№99-)

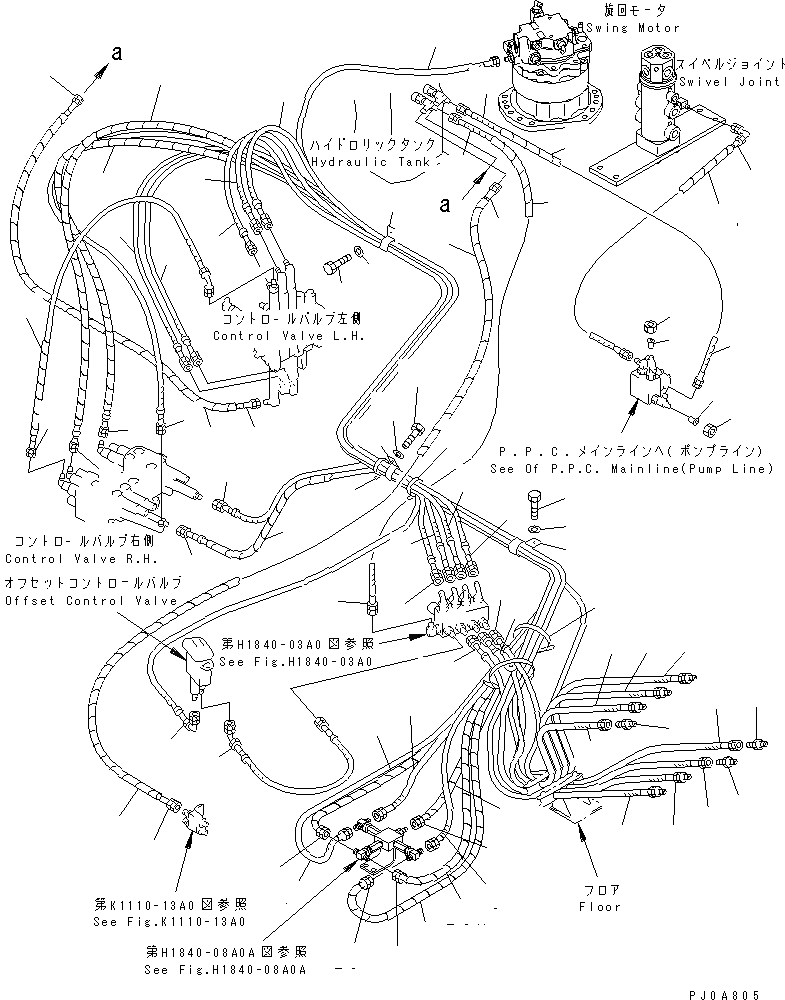

Запчасти Komatsu PC50UU-2 P.P.C. ОСНОВН. ЛИНИЯ (ОСНОВН. ЛИНИЯ PPC)(№99-) ГИДРАВЛИКА

№

Артикул

Название

Примечание

Количество

1

20U-62-23670

HOSE¤ 1200MM,BLACK

2

20U-62-23670

HOSE¤ 1200MM,YELLOW

3

20U-62-23141

HOSE,RED

4

20U-62-23611

HOSE,BLUE

5

20U-62-22180

NIPPLE

6

20U-62-23122

HOSE,BROWN

7

21W-62-22790

HOSE,WHITE

8

20U-62-23122

HOSE,GREEN

9

20U-62-23690

HOSE¤ 1050MM,WHITE-BLACK

10

20U-62-23640

HOSE,WHITE-RED

11

20U-62-23410

HOSE,ORANGE

11A

08210-01802

SPIRAL TUBE

11B

08210-01805

SPIRAL TUBE

11C

08210-01806

SPIRAL TUBE

12

20U-62-23620

HOSE

12A

08210-01809

SPIRAL TUBE

13

20U-62-22411

HOSE

13A

08210-01802

SPIRAL TUBE

14

20U-62-23710

HOSE

14A

08210-01806

SPIRAL TUBE

15

20U-62-23740

HOSE

15A

08210-01813

SPIRAL TUBE

16

201-62-72190

HOSE¤ 1350MM

16A

08210-01805

SPIRAL TUBE

17

21W-62-22830

HOSE,WHITE-BLACK

18

21W-62-22830

HOSE,GREEN

19

20U-62-23730

HOSE,BLACK

20

20U-62-23730

HOSE,WHITE

21

20U-62-23780

HOSE¤ 330MM,YELLOW

22

20U-62-22180

NIPPLE

23

20U-62-23880

HOSE,BROWN

24

21W-62-22830

HOSE,GREEN

25

20U-62-22180

NIPPLE

25A

08210-01802

SPIRAL TUBE

26

20U-62-23690

HOSE¤ 1050MM

26A

08210-01803

SPIRAL TUBE

27

21K-03-11190

CLIP

28

01010-81020

BOLT

29

01643-31032

WASHER

30

08034-00823

BAND

31

23S-62-25850

CLIP

32

01010-81020

BOLT

33

01643-31032

WASHER

34

209-62-77940

HOSE¤ 600MM

34A

08210-01802

SPIRAL TUBE

35

07222-00210

PLUG,(FOR ATTACHMENT LINE LESS)

36

07221-20210

NUT,(FOR ATTACHMENT LINE LESS)
