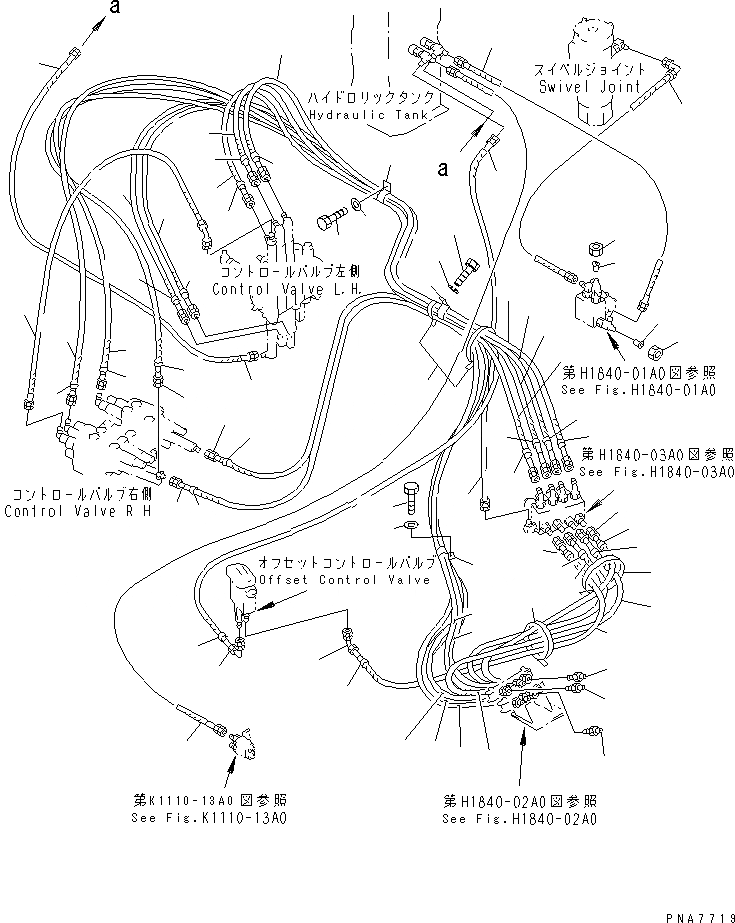

Запчасти Komatsu PC50UU-2 P.P.C. ОСНОВН. ЛИНИЯ (ОСНОВН. ЛИНИЯ PPC)(№8-99) ГИДРАВЛИКА

1

21X-62-22230

HOSE

2

203-62-57910

MARK¤ 1

3

20U-62-23790

HOSE

4

203-62-57920

MARK¤ 2

5

20U-62-23122

HOSE

6

203-62-57970

MARK¤ 7

7

20U-62-23410

HOSE

8

203-62-57980

MARK¤ 8

9

20U-62-23611

HOSE

10

20U-62-22180

NIPPLE

11

203-62-57940

MARK¤ 4

12

20U-62-23141

HOSE

13

203-62-57930

MARK¤ 3

14

20U-62-23161

HOSE

15

203-62-57960

MARK¤ 6

16

21W-62-22850

HOSE

17

203-62-57950

MARK¤ 5

18

20U-62-23670

HOSE¤ 1200MM

19

203-62-57990

MARK¤ 10

20

20U-62-23640

HOSE

21

203-62-58110

MARK¤ 11

22

20U-62-23620

HOSE

23

20U-62-22411

HOSE

24

20U-62-23710

HOSE

25

20U-62-23740

HOSE

26

20U-62-23670

HOSE¤ 1200MM

27

20U-62-23730

HOSE

28

203-62-57920

MARK¤ 2

29

20U-62-22270

HOSE

30

20U-62-22180

NIPPLE

31

203-62-57910

MARK¤ 1

32

20U-62-23780

HOSE¤ 330MM

33

20U-62-22180

NIPPLE

34

203-62-57970

MARK¤ 7

35

21W-62-22830

HOSE

36

203-62-57990

MARK¤ 10

37

04434-53211

CLIP

38

01010-51020

BOLT

39

01643-31032

WASHER

40

08034-00823

BAND

41

155-61-15350

CLIP

42

01010-51020

BOLT

43

01643-31032

WASHER

44

20U-62-22421

HOSE

45

07222-00210

PLUG

46

07221-20210

NUT
