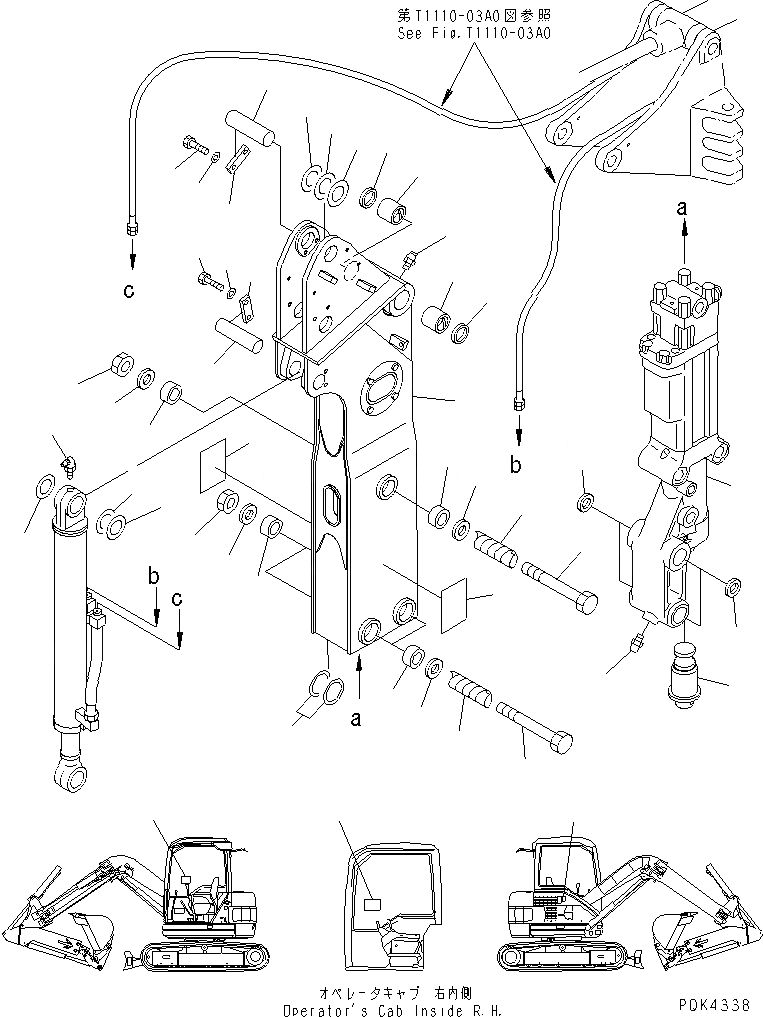

Запчасти Komatsu PC50UU-2 ГИДРОМОЛОТ РУКОЯТЬ (РУКОЯТЬ)(№-) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

20U-970-0031

ARM ASS'Y

|1

20U-970-0030

ARM ASS'Y

1

ARM

2

20T-70-81140

BUSHING

|2

20T-70-71140

BUSHING

3

07020-00675

FITTING,GREASE

4

07145-00050

SEAL,DUST

5

20N-970-7630

PLATE¤ MARK,BREAKER

6

20S-970-7750

PLATE¤ CAUTION,BREAKER WORKING

7

20S-970-7760

PLATE¤ CAUTION,HYDRAULIC OIL

8

20T-70-71571

PIN

9

04082-00212

LOCK

10

01010-81230

BOLT

11

01643-31232

WASHER

12

21W-70-21440

SHIM¤ 3.0MM

13

20T-70-81750

SPACER¤ 0.5MM

|13

424-46-12540

SHIM¤ 0.5MM

14

20T-70-81730

SPACER¤ 1.0MM

|14

201-70-23140

SPACER¤ 1.0MM

15

20U-970-2130

PIN

16

04082-00212

LOCK

17

01010-81230

BOLT

18

01643-31232

WASHER

19

20U-70-21780

SHIM¤ 2.5MM

20

20T-70-81710

SPACER¤ 1.0MM

|20

20T-70-19130

SPACER¤ 1.0MM

21

07020-00900

FITTING,GREASE

22

20T-970-7230

COLLAR

23

20T-970-7240

COLLAR

24

20T-970-7480

BOLT

25

20T-970-7390

WASHER

26

01580-13024

NUT

27

20T-970-7330

SHIM¤ 0.5MM

28

20T-970-7340

COVER

29

20T-970-7350

COVER

30

20U-970-0050

BREAKER ASS'Y,(SEE FIG.T1200-03A8)

|30

20T-970-0040

BREAKER ASS'Y,(SEE FIG.T1200-03A8)

31

20T-970-7280

DUMMY CHISEL

32

07145-00045

SEAL,DUST

33

07020-00675

FITTING,GREASE
