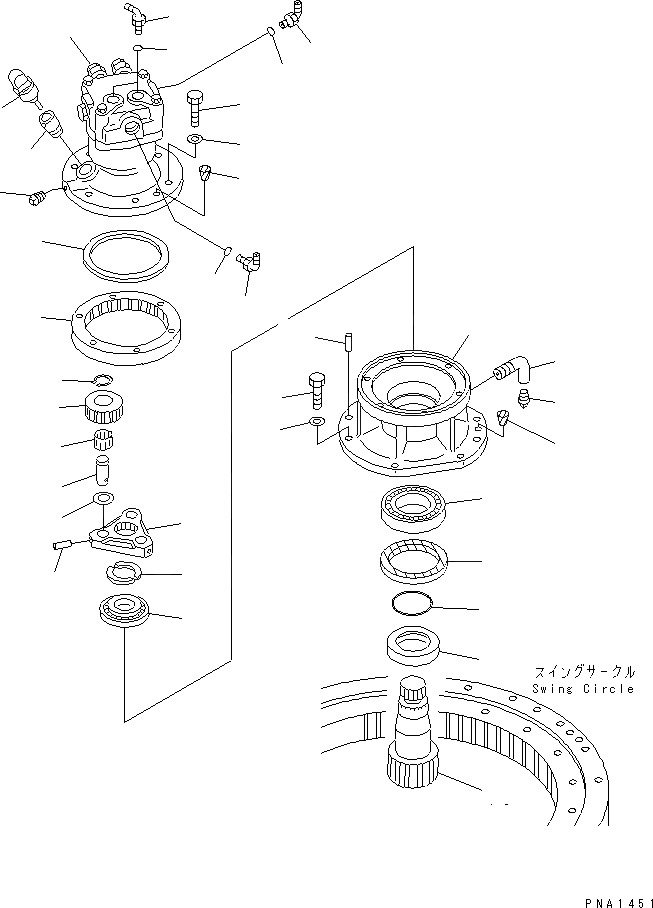

Запчасти Komatsu PC50UU-2 МЕХАНИЗМ ПОВОРОТА И МОТОР (МЕХАНИЗМ ПОВОРОТА)(№8-77) ПОВОРОТН. КРУГ И КОМПОНЕНТЫ

|1

20U-26-00020

SWING MACHINERY A.

1

20U-26-21140

CASE

2

20T-26-71320

PIPE

3

07042-30211

PLUG

4

07049-01215

PLUG

5

20T-26-71231

BEARING

6

20T-26-71151

COLLAR

7

07000-02060

O-RING

8

07012-00090

SEAL,OIL

9

20T-26-71221

BEARING

10

20U-26-21120

SHAFT

11

20T-26-71311

SPACER

12

20T-26-71132

CARRIER

13

20T-26-71180

GEAR

14

20T-26-71190

BEARING

15

20S-26-71160

WASHER,THRUST

16

20T-26-71211

SHAFT

17

20S-26-71250

PIN

18

20S-26-71190

RING,SNAP

19

20T-26-71170

GEAR,RING

20

20T-26-71111

SPACER

21

708-7T-00150

SWING MOTOR ASS'Y

22

07049-01012

PLUG

23

07042-20108

PLUG

24

20T-26-71340

FILLER,GAUGE

25

20T-26-71330

CAP,GAUGE

26

01010-51055

BOLT

27

01643-31032

WASHER

28

07235-10315

ELBOW

29

07002-12034

O-RING

30

07235-10422

ELBOW

31

20T-62-71640

ELBOW

32

07002-02034

O-RING

33

01010-51245

BOLT

34

01643-31232

WASHER

35

04020-01434

PIN,DOWEL
