Запчасти Komatsu PC50UU-2 P.P.C. ОСНОВН. ЛИНИЯ (ОСНОВН. ЛИНИЯ PPC) (EC СПЕЦ-Я.)(№8-) ГИДРАВЛИКА

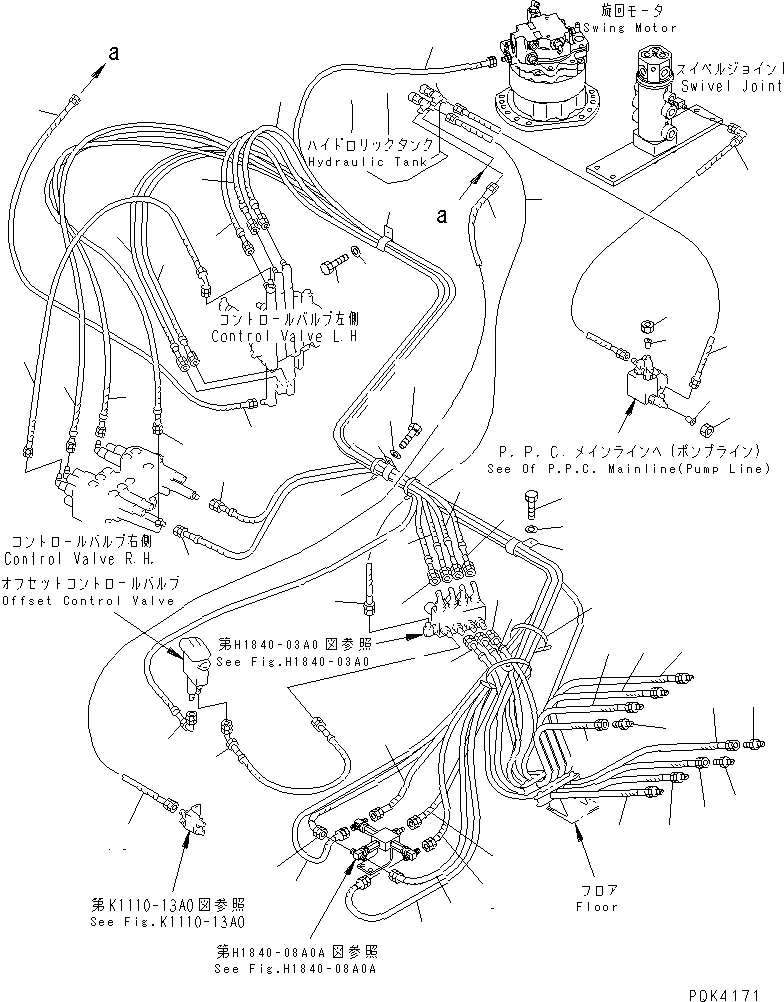

Схема запчастей Komatsu PC50UU-2 - P.P.C. ОСНОВН. ЛИНИЯ (ОСНОВН. ЛИНИЯ PPC) (EC СПЕЦ-Я.)(№8-) ГИДРАВЛИКА
1
1
2
2
3
3
4
4
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
14
14
15
16
16
17
18
18
19
19
20
20
21
21
22
23
23
24
24
25
26
26
27
28
29
30
30
30
31
31
32
32
33
33
34
35
35
36
36

Артикул

Название

Примечание

Количество

1

20U-62-23670

HOSE, 1200MM,BLACK

2

20U-62-23670

HOSE, 1200MM,YELLOW

3

20U-62-23141

HOSE,RED

4

20U-62-23611

HOSE,BLUE

5

20U-62-22180

NIPPLE

6

20U-62-23122

HOSE,BROWN

7

21W-62-22790

HOSE,WHITE

8

20U-62-23122

HOSE,GREEN

9

20U-62-23690

HOSE, 1050MM,WHITE-BLACK

10

20U-62-23640

HOSE,WHITE-RED

11

20U-62-23410

HOSE,ORANGE

12

20U-62-23620

HOSE

13

20U-62-22411

HOSE

14

20U-62-23710

HOSE

15

20U-62-23740

HOSE

16

201-62-72190

HOSE, 1350MM

17

21W-62-22830

HOSE,WHITE-BLACK

18

21W-62-22830

HOSE,GREEN

19

20U-62-23730

HOSE,BLACK

20

20U-62-23730

HOSE,WHITE

21

20U-62-23780

HOSE, 330MM,YELLOW

22

20U-62-22180

NIPPLE

23

20U-62-23880

HOSE,BROWN

24

21W-62-22830

HOSE,GREEN

25

20U-62-22180

NIPPLE

26

20U-62-23690

HOSE, 1050MM

27

21K-03-11190

CLIP

28

01010-81020

BOLT

29

01643-31032

WASHER

30

08034-00823

BAND

31

23S-62-25850

CLIP

32

01010-81020

BOLT

33

01643-31032

WASHER

34

209-62-77940

HOSE, 600MM

35

07222-00210

PLUG,(FOR ATTACHMENT LINE LESS)

36

07221-20210

NUT,(FOR ATTACHMENT LINE LESS)

Выбрано товаров: 36
