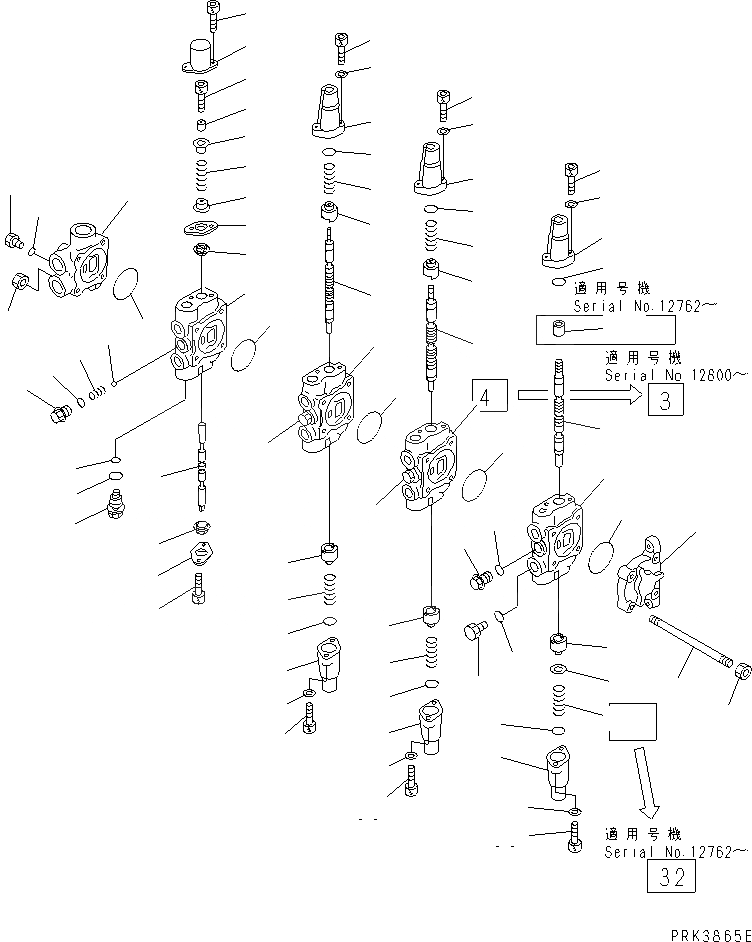

Запчасти Komatsu PC50UU-2 ОСНОВН. КЛАПАН (-КЛАПАН) (ДЛЯ КЛАПАН ЛЕВ.) (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$3

709-34-14200

VALVE ASS'Y

|$4

709-34-13800

VALVE ASS'Y

|$5

709-34-12900

VALVE ASS'Y

|$7

709-34-00181

BODY GROUP ASS'Y

|$8

709-34-00140

BODY GROUP ASS'Y

|$9

709-34-00080

BODY GROUP ASS'Y

|$10

709-34-20300

BODY SUB ASS'Y

|$11

709-34-10600

BODY SUB ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

3

BLOCK

4

BLOCK

4

BLOCK

5

COVER

6

07000-12055

O-RING

7

700-25-11210

STUD

8

01580-10806

NUT

9

SPOOL

10

SPOOL

10

SPOOL

11

709-32-11530

SEAL

12

709-32-11540

PLATE

13

01252-60610

BOLT

13

01252-30610

BOLT

14

709-32-11550

RETAINER

15

709-32-11560

COLLAR

16

709-32-11580

SPRING

17

01252-60620

BOLT

17

01252-30620

BOLT

18

709-32-11570

COVER

19

01252-60616

BOLT

19

01252-30616

BOLT

20

04260-01270

BALL

21

709-32-11820

SPRING

22

709-32-11810

PLUG

23

07002-11823

O-RING

24

709-32-11930

PLUG

25

709-32-11830

PLUG

26

709-32-11840

O-RING

27

07002-12034

O-RING

27

07002-02034

O-RING

28

SPOOL

28

SPOOL

29

SPOOL

29

SPOOL

30

709-32-12851

CASE

31

709-32-12840

RETAINER

32

709-32-13510

SPRING

32

709-32-13510

SPRING

33

709-32-14510

SPRING

33A

709-32-14830

COLLAR

34

709-32-11760

O-RING

35

01252-60622

BOLT

35

01252-30622

BOLT

36

01641-20608

WASHER

37

07040-11007

PLUG

38

07002-11023

O-RING

39

07040-11812

PLUG

40

07002-11823

O-RING

41

709-32-13830

SHIM
