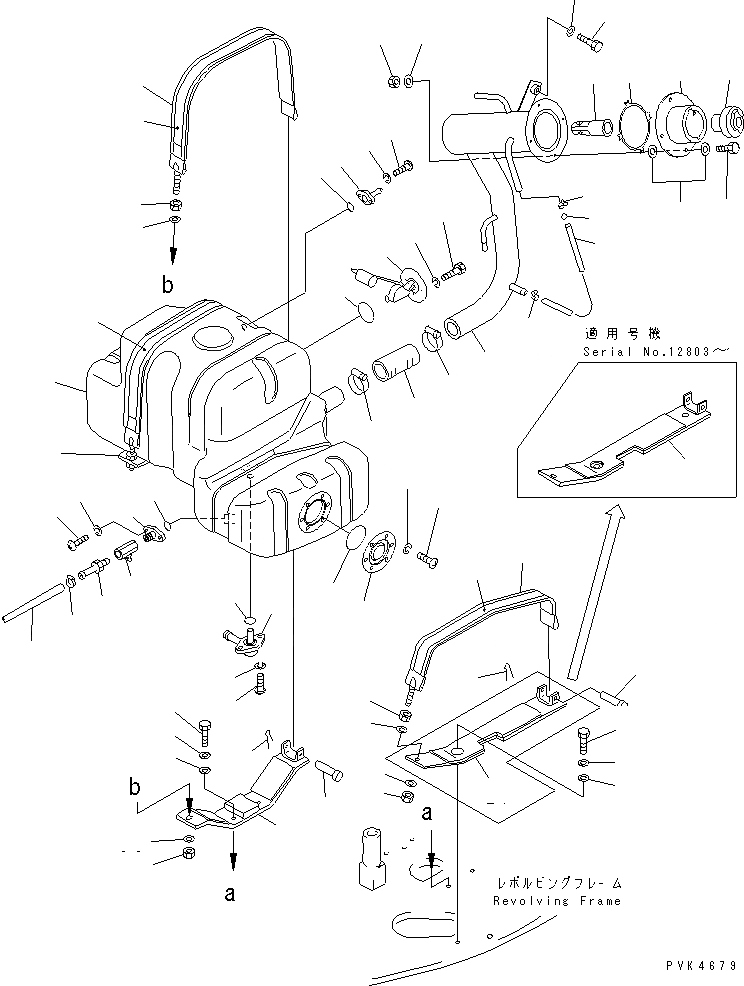

Запчасти Komatsu PC50UU-2 ТОПЛИВН. БАК. (БАК)(№8-) ТОПЛИВН. БАК. AND КОМПОНЕНТЫ

1

20U-04-21261

TANK

2

21Y-04-11381

FLANGE ASS'Y

3

01220-40616

SCREW

4

01602-20619

WASHER

5

07000-02015

O-RING

6

20U-04-21150

FLANGE

7

01220-40620

SCREW

8

01602-20619

WASHER

9

07000-02015

O-RING

|$12

20U-04-00010

VALVE ASS'Y

10

FLANGE

11

VALVE

12

NIPPLE

13

01220-40620

SCREW

14

01602-20619

WASHER

15

07000-02015

O-RING

16

07270-01245

TUBE

17

07280-01620

CLAMP

18

20U-04-21410

PLATE

19

07000-E2080

O-RING

19

07000-02080

O-RING

20

01220-40612

SCREW

21

01602-20619

WASHER

22

7861-92-5820

SENSOR

23

01252-40612

BOLT

24

01602-20619

WASHER

25

07000-03048

O-RING

26

20U-04-21181

BRACKET

27

21W-04-31220

BRACKET

27

20U-04-21250

BRACKET

28

01010-81230

BOLT

29

01643-31232

WASHER

30

01641-21223

WASHER

31

20U-04-21221

BAND

32

20U-04-21210

CUSHION

33

20U-04-21280

BAND

34

20U-04-21290

CUSHION

35

20U-04-21240

PIN

36

04052-11038

PIN

37

01580-11210

NUT

38

01643-31232

WASHER

39

20U-04-21124

TUBE

40

20U-04-21440

COVER

41

07056-18416

STRAINER

42

20U-04-21450

GASKET

43

01010-80820

BOLT

44

01643-50823

WASHER

45

01580-10806

NUT

46

20U-04-21360

CAP

47

01010-81020

BOLT

48

01643-31032

WASHER

49

20U-04-21131

HOSE

50

07281-00709

CLAMP

51

20U-04-21320

TUBE

52

07285-00155

CLIP

53

201-04-21160

BALL
