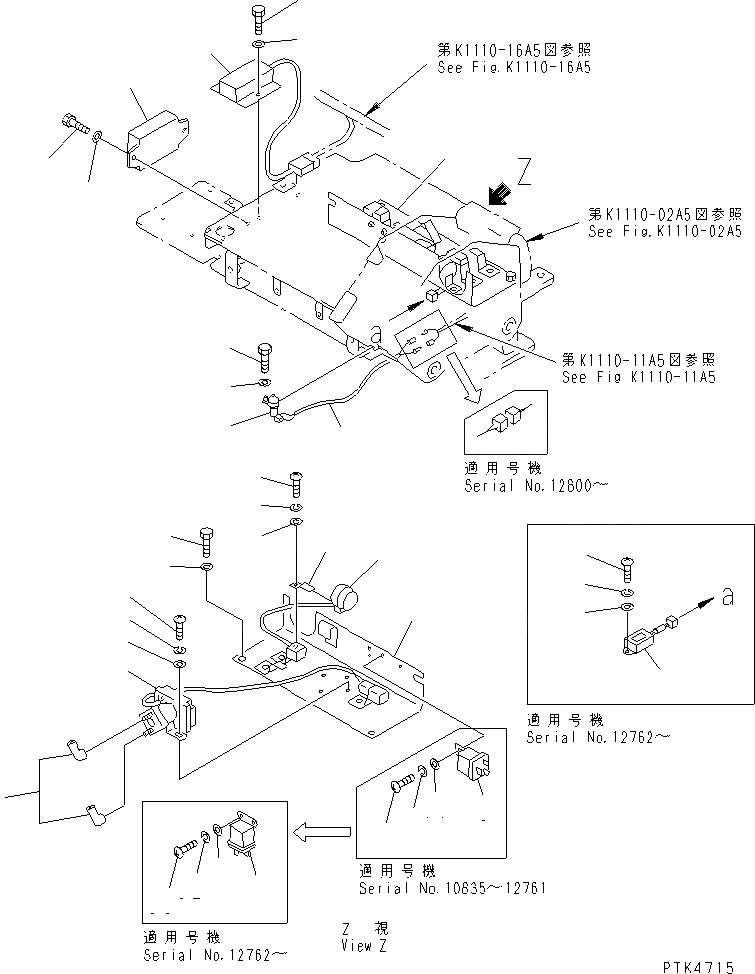

Запчасти Komatsu PC50UU-2 ОСНОВН. КОНСТРУКЦИЯ (ДЛЯ ЭЛЕКТРИКА) (EC СПЕЦ-Я.) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

20U-54-26162

BRACKET

1

20U-54-26161

BRACKET

2

01010-81025

BOLT

3

01643-31032

WASHER

4

20T-06-71650

RELAY,SAFETY

5

01220-40612

SCREW

6

01602-20619

WASHER,SPRING

7

01641-20608

WASHER

8

08038-00519

CAP

9

21X-06-12310

RELAY ASS'Y,STOP MOTOR

10

01220-40616

SCREW

10

01220-40612

SCREW

11

01643-30623

WASHER

12

01602-20619

WASHER,SPRING

13

21Y-06-11260

BUZZER ASS'Y

14

21Y-06-11270

PLATE

15

01220-40616

SCREW

16

01643-30623

WASHER

17

01602-20619

WASHER,SPRING

18

20T-06-71770

SWITCH,P.P.C. LOCK

18

20T-06-71520

SWITCH,P.P.C. LOCK

19

20U-43-21360

SCREW

20

01641-20508

WASHER

21

20T-06-71532

HARNESS,WIRING

21

20T-06-71531

HARNESS,WIRING

22

7824-65-2400

RESISTOR

23

01010-80816

BOLT

24

01643-30823

WASHER

25

20U-06-21610

TIMER ASS'Y

26

01010-80612

BOLT

27

01643-30623

WASHER

28

20T-06-71750

RELAY ASS'Y

29

20T-06-71760

TIMER

30

01220-40616

SCREW

31

01643-30623

WASHER

32

01602-20619

WASHER,SPRING
